Specific Size Design to Meet Uncoupling Membrane Installation;
It is safe in the bathroom, kitchen room and other wet locations;
Both 120Vac and 240Vac Rated Voltage are available;
The maximum ambient temperature is 85oF(30oC);
Approved by UL, ETL, and CSA;
ODM order is welcome for Europe Markets;
25 Years Warranty;
Jiahong Membrane Floor heating cable is a twin-conductor constant wattage electric under tile heating cable. It is generally used to provide heat for the floor and it requires an extra heating thermostat to provide temperature control. Jiahong Membrane Floor heating cable heats up through the inner conductor. The rated voltage is 120V and 240V. In 120V, our regular lengths range from 16.5 to 495 linear feet. For 240V, our lengths range from 33 to 990 linear feet.
Jiahong Membrane Floor heating cable is not only installed under the floor separately but also suitable for the cable installation membrane, uncoupling and crack isolation membrane with rounded square-shaped reliefs. With over 25 year’s experiences of developing and manufacturing, Jiahong is the only manufacturer in China who can make this super temperature self-regulating heating cable. All Jiahong Explosion Proof Heat Trace Cable is approved by CE, ATEX, IECEX, and EAC. The cables are popular in Europe.
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
Supports One Stop Source
Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery
Allows Third Party Audit and ISO9001 Quality Audit
Jiahong Membrane Floor heating cable is a twin-conductor constant wattage electric under tile heating cable. It is designed to enable easy installation of the floor heating system. So it normally works with the membrane.
In residential, it is widely used in the living room or bedroom. It is also safe in the bathroom, basement, kitchen room, and other wet locations. The cable is very popular in North America, especially in the USA.

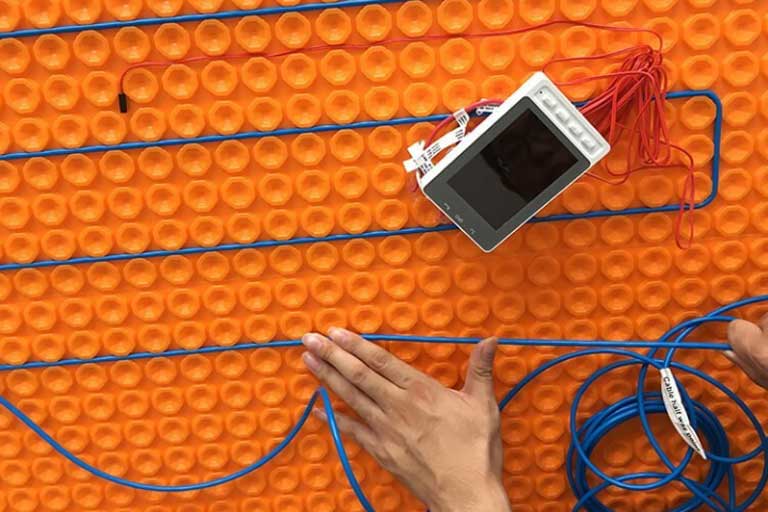

Figure 1: Floor Heating Cables on the Membrane
Jiahong Membrane Floor heating cable heats up through the inner conductor. The conductor is also the heating resistance. The Membrane Floor heating cable cannot be cut at the installation site because the length and power of the constant wattage cable are deterministic.
Jiahong Membrane Floor heating cable’s rated voltage is 120V and 240V. In 120V, our regular lengths range from 16.5 to 495 linear feet. For 240V, our lengths range from 33 to 990 linear feet. Its output is 3.7W per feet and the error difference is around minus or plus 10%.
The maximum ambient temperature is 85oF (30oC) and the minimum installation temperature is 40oF (5oC). The twin-conductor structure allows it to connect to the power from a single connection point.

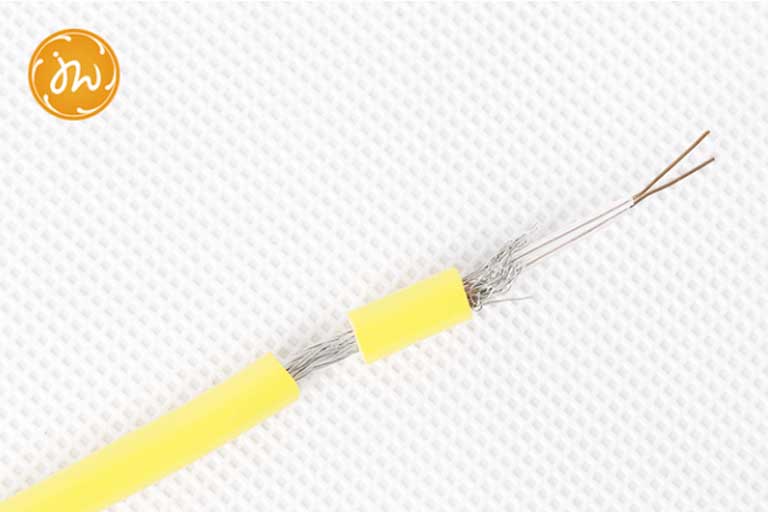

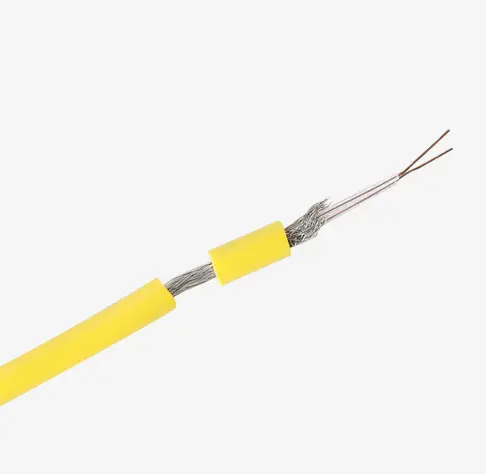

Figure 2: The Structure of the Underfloor Heating Cable
Jiahong Membrane Floor heating cable is ultra-low EMF (electromagnetic field) by design. The cable consists of two components: Heating Cable and Cold Lead. The Cold lead is 10ft. (3m) the regular electric wire with a plug.
And Heating Cable has 4 layers. The inner conductor is made of tinned copper.

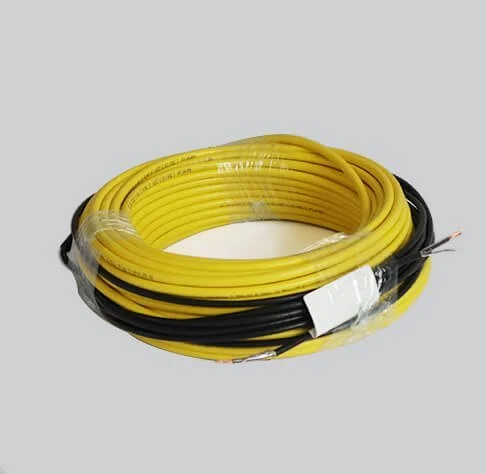

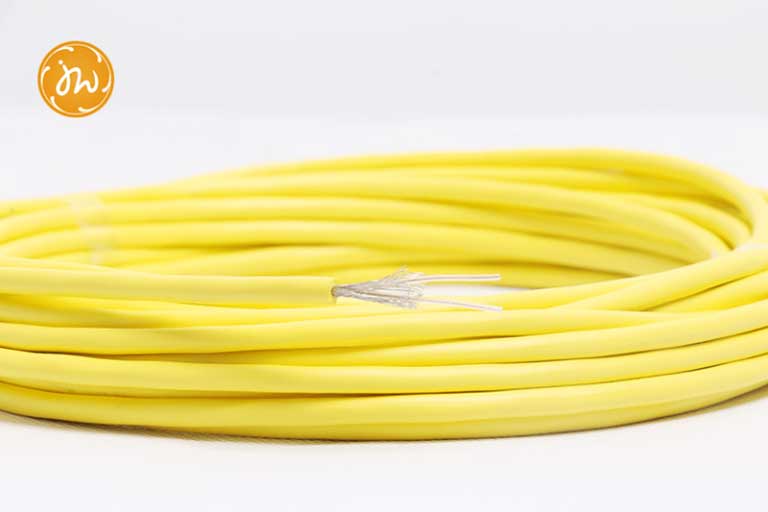

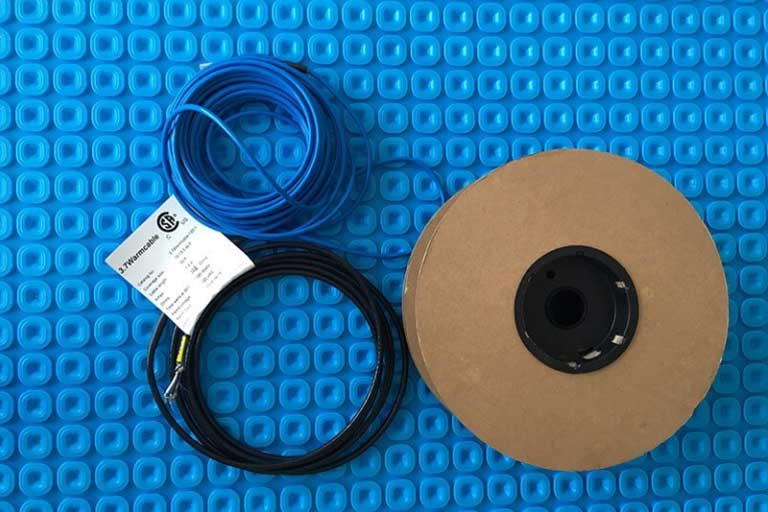

Figure 3: Rolled Up Floor Heating Cables
It is not only the conductor but also a heating element. Inner conductor insulation is made of the fluoropolymer. This plastic is resistant to high temperature and pressure.
The plated copper braid increases robust construction, provides the ground path and additional protection in any location. The outer jacket is made of PVC.

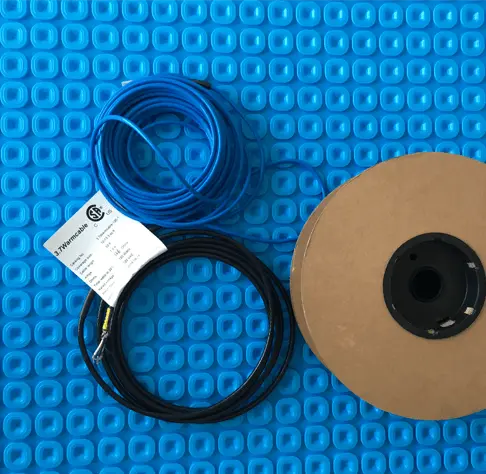

Figure 4: Installing Floor Heating Cables in Membrane
Jiahong Membrane Floor heating cable works with a precise thermostat. The thermostat is used to monitor and detect indoor and floor temperature, then make a response to the change.
Jiahong Membrane Floor heating cable is suitable for all popular thermostat on markets. You may also choose our thermostat as well.
Jiahong Membrane Floor heating cable is not only installed under the floor separately but also suitable for the cable installation membrane, an uncoupling and crack isolation membrane with rounded square-shaped reliefs.
The unique channel design in cable installation membranes makes it easy to snap the cable right in for easy installation of electric radiant floor heat. Besides, the combination protects subfloors from wetness and humidity with vapor management and waterproofing properties.
This simple mechanism design ensures the wire can be used stably for more than 30 years.
No matter the rated voltage (120VAC or 240VAC), Membrane Floor heating cable can be installed in 3 types of line space: 2.4”, 3.6” and 4.8”. Because the floor may heat evenly during this situation.
And we recommend standard cable spacing is 3.6”. Jiahong Membrane Floor heating cable is generally packed in wooden spools or plastic spools.
Normally we deliver the specified length. Meanwhile, we provide all the necessary matched accessories such as the membrane, thermostat, and other kits.
Jiahong Membrane Floor heating cable is approved by UL, ETL and CSA certified. It comes with a 25-year warranty, which is the longest in the industry.
