Mainly applied to outdoor snow and ice melting;
It is safe in the bathroom, kitchen room and other wet locations;
Both 120Vac and 240Vac Rated Voltage are available;
The maximum ambient temperature is 85oF(30oC);
UL and CSA Approved;
Suitable for the most thermostat in North American Markets;
25 Years Warranty;
Jiahong Electric Heat Cable is a kind of residential grade twin-conductor Defrost Snow Heating Cable. It is designed to provide a flexible option for melting snow and ice on driveways, stairways, and other large open areas, as well as odd-shaped areas. The Electric Heat Cable is easily installed for use with concrete, paver, asphalt or tile. This cable has been developed together with European Brands, and it has already been working stably for more than 25 years. The popular model is 28w/m.
Jiahong Electric Heat Cable heats up through inner conductor. The conductor is also its heating resistance. The whole cable is a complete series of resistance, so it cannot be cut at any circumstances. Rated voltage is 230V. The cable shall have the continuous working temperature up to 30°C and the minimum installation temperature of 40°F (5°C). Meanwhile, it is ultra-low EMF (electromagnetic field) by design. The twin conductor structure supports single point connection. Every Jiahong Heat Cable is rigorously tested before packing. Also, they have been approved by CE and EAC.
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America
Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery
Supports One Stop Sourcing
Jiahong Electric Heat Cable is a kind of residential grade twin-conductor constant wattage heating cable.
It is designed to provide a flexible option for melting snow and ice on driveways, stairways, and other large open areas, as well as odd-shaped areas.
The Electric Heat Cable is easily installed for use with concrete, paver, asphalt or tile.
This cable has been developed together with European Brands, and it has already been working stably for more than 25 years.
The popular model is 28w/m.

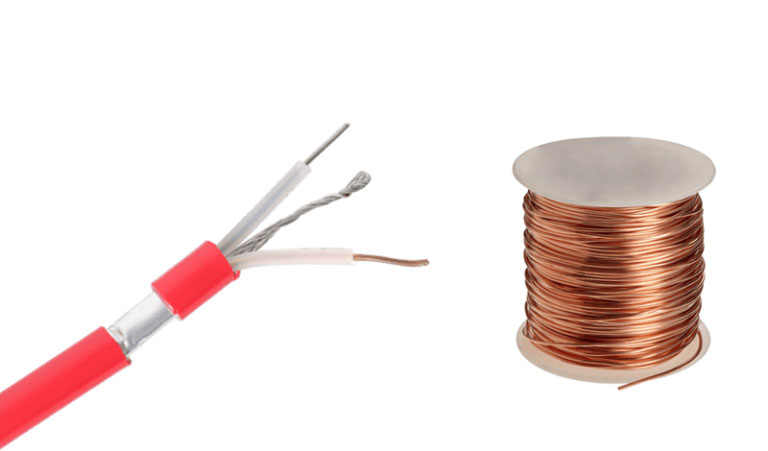

Graphic: Bus Wire of Electric Heat Cable
Jiahong Electric Heat Cable heats up through inner conductor.
The conductor is also its heating resistance.
The whole cable is a complete series of resistance, so it cannot be cut at any circumstances.
Rated voltage is 230V.
The cable has a continuous working temperature of up to 30°C and the minimum installation temperature is 40°F (5°C).

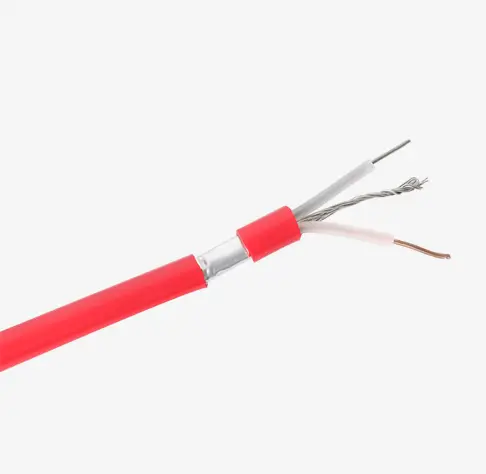

Graphic: Electric Heat Cable
Meanwhile, it is ultra-low EMF (electromagnetic field) by design.
The twin conductor structure supports single point connection.
Jiahong Electric Heat Cable consists of two components: Heating Cable and Cold Lead.
The cold lead is a 10ft (3m) regular electric wire with a plug.
And heating cable has 4 layers.
The inner conductor is made of tinned copper.
The resistance of this tin plated copper is determined by its shape and length and rarely affected by the ambient temperature.
So it is the ideal material for the heating conductor.
The inner conductor insulation is made of XLPE which is an environmentally friendly material.
It can be replaced with Fluoropolymer.

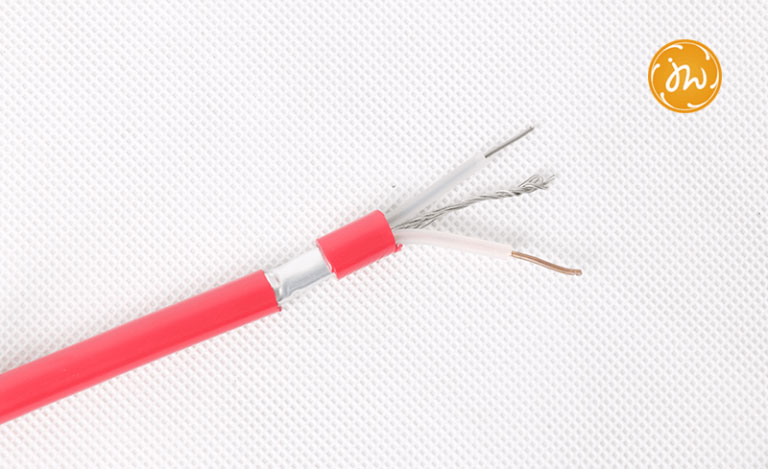

Graphic: Heating Cable Assembly
This plastic has the characteristics of high temperature and high-pressure resistance.
The screen layer is a piece of aluminum foil that can absorb 100% of electromagnetic radiation.
The outer jacket is made of a waterproof material that supports the cable in a humid environment.
This simple mechanism design ensures that the wire can be used stably for more than 30 years.
Jiahong electric heat cables do not require a thermostat.
It is normally installed outside, to melt snow and ice.
Once the process is complete, simply turn OFF the power.
Jiahong Electric Heat Cable is 100% made in our factory.
All raw materials are from our long-term suppliers, and they are tested before entering our raw materials warehouse.
After manufacturing the final product, we randomly test them according to CSA standards.
By the way, Jiahong has the only CSA Standards Testing Lab in China.
All Jiahong Electric Heat Cables have CE certificate.
Besides, we offer a 25-year warranty, which is the longest in the industry.
Jiahong Electric Heat Cable is generally packed in wooden spools or plastic spools.
And it we deliver at a specified length.
You can also customize your own packing types such as the corrugated box.
Our design department will be glad to provide a professional appearance design.
Graphic: OEM Electric Heat Cables for Brands
As the largest manufacturer in Asia-Pacific, in addition to providing OEM services, we also accept orders from ODM.
Our experienced engineers are able to help develop any heating cable according to your practical requests.
| 230V | Length | Watts (3.7W/ft.) | Amps | ohms | |
| Catalog Number | ft. | m | |||
| DEFROST SNOW/2R 640 | 75 | 22.9 | 640 | 2.8 | 82.7 |
| DEFROST SNOW/2R 890 | 105 | 31.9 | 890 | 3.9 | 59.4 |
| DEFROST SNOW/2R 1270 | 149 | 45.4 | 1270 | 5.6 | 41.7 |
| DEFROST SNOW/2R 1900 | 223 | 68.1 | 1900 | 8.3 | 27.8 |
| DEFROST SNOW/2R 2700 | 316 | 96.4 | 2700 | 11.8 | 19.6 |
| DEFROST SNOW/2R 3400 | 394 | 120 | 3400 | 14.8 | 15.6 |
