Double conductors structure and single point connection;
It is safe for both dry and wet locations;
Both 120Vac and 240Vac rated voltage are available;
The maximum ambient temperature is 85oF(30oC);
UL and CSA Approved;
Matches most thermostats in the North American Markets;

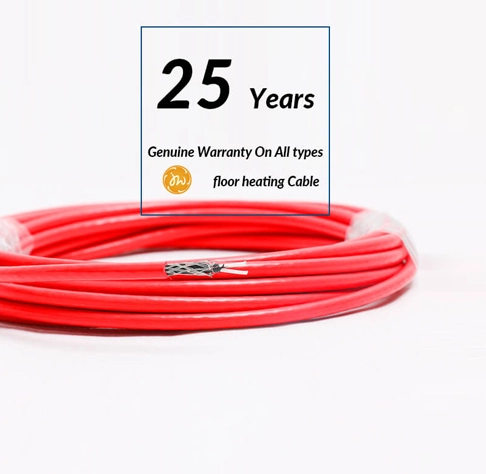

25 Years Warranty;
Jiahong Floor Warming Cable is a twin-conductor constant wattage tile floor heating cable. It is mainly designed for North American Markets. It can be used in the living room and bedroom. It is also safe in the bathroom, basement, kitchen room, and other wet locations. Jiahong Floor Warming Cable heats up through the inner conductor. It cannot be cut in any situation because the length and power of the constant wattage cable are deterministic. The rated voltage is 120V or 240V. In 120V, our regular lengths range from 40 to 400 feet. For 240V, our lengths range from 80 to 800 feet. 120Vac cable is often used in residential places and 240Vac cable is popular for commercial locations such as the office. Every Jiahong Floor Warming Cable must pass rigorous testing before packing as per the CSA regulations. And the cables have been approved by UL and CSA.
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America
Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery
Passed The Third part Audit and ISO2008 Audit
Jiahong Floor Warming Cable is a twin-conductor constant wattage tile floor heating cable. It is mainly designed for the North American Markets. It can be used in the living room and bedroom. It is also safe in the bathroom, basement, and kitchen room and other wet locations.
Jiahong Floor Warming Cable heats up through the inner conductor. It cannot be cut in any situation because the length and power of the constant wattage cable are deterministic. The rated voltage is 120V or 240V. In 120V, our regular lengths range from 40 to 400 feet. For 240V, our lengths range from 80 to 800 feet. 120Vac cable is often used in residential places and 240Vac cable is popular for commercial locations such as an office.
Jiahong Floor Warming Cable’s output is 3.0W per feet and the error difference is around plus or minus 10%. The maximum ambient temperature is 85oF (30oC) and the minimum installation temperature is 40oF (5oC).
| Cable Construction | Twin conductor |
| Rated Voltage | 120V,240V |
| Output | 3W/f (9.84W/m)±10% |
| Heating Element Size | 40ʹ(12.2 m) to 800ʹ(243.8 m) |
| Bending radius | 1″ (25.4mm) |
| Cable Diameter | 1/8″-1/6″ (3.2mm-4.2mm) |
| Conductor Insulation | Fluoropolymer |
| Outer Insulation | Fluoropolymer or PVC |
| Max. Ambient Temp | 85℉(30℃) |
| Min. Installation Temp | 40℉(5℃) |
| Cold lead | 10f (3m) length |

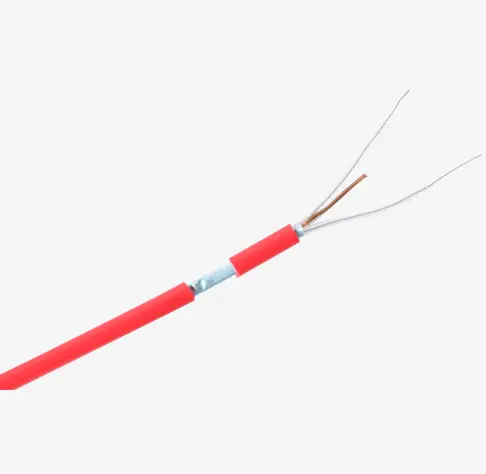

The twin-conductor structure allows it to connect to the power from a single connection point. Jiahong Floor Warming Cable contains five components: inner conductor, conductor insulation, ground protection wire, aluminum foil shield, and outer jacket.
The inner conductor is made of tinned copper. It is the main element – it is not only the conductor but also the heating element.
The insulation is required to withstand the high temperature and high voltage. It commonly uses fluoropolymer such as ETFE or FEP.
The aluminum foil shield has an important function that secures the two pieces of conductors, which is the main benefit for the wrapping of the outer jacket. Meanwhile, the braid can shield electromagnetic radiation generated inside.
In order to provide ground protection, it is necessary to add a piece of tinned copper wire between the shield and insulation. The outer jacket is usually made of 100% waterproof PVC. This ensures it can be used in wet locations. It is this simple and stable structure that supports the over 30 years’ service lifespan.

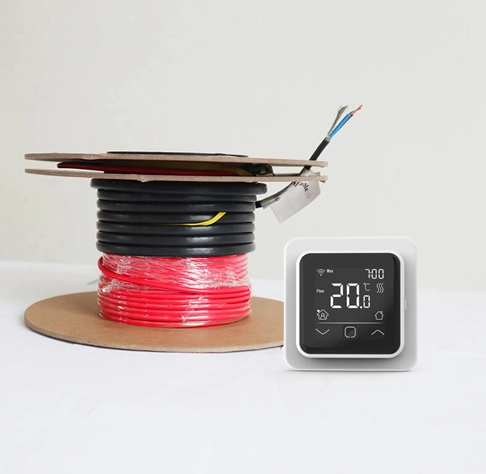

All Jiahong Floor Warming Cable work together with an accurate thermostat. The thermostat is used to monitor and detect indoor temperature or floor temperature and then respond appropriately to the changes. Jiahong Floor Warming Cable is suitable for all popular thermostats in the North American markets. You may also choose our thermostats as well.
Jiahong Floor Warming Cable is flexible to install because it is a loose floor heating cable. There is no fixed cable space, so you can arbitrarily decide the cable spacing within the range we specify. This flexible installation is also preferred by our DIY enthusiasts.
Jiahong Floor Warming Cable is generally delivered in a complete heating cable. It consists of two different components: heating cable and cold lead. The cold lead is a 10ft (3m) regular electric wire with a plug.

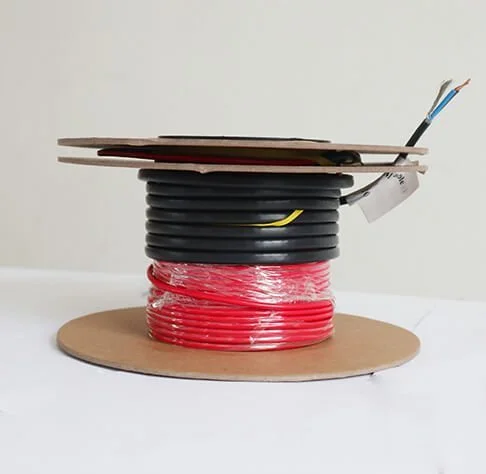

Jiahong Floor Warming Cable is packed in wooden spools or plastic spools with a specific length. It can also be made into a heating mesh or heating mat.
Every Jiahong Floor Warming Cable is rigorously tested before packing. Any functional problems will be found and solved before the packing. And Testing standards conform to the CSA regulations. Meanwhile,
Jiahong Floor Warming Cable or floor heating cables have been approved by UL and CSA. These certificates are important in-floor heating cable industry. They are common standards for North American Markets, and also accepted by brands like Easyheat and Suntouch.
Jiahong is one of the few companies with many patents and reports on floor warming cables in China.
Specification
| Cable Construction | Twin conductor |
| Rated Voltage | 120V,240V |
| Output | 3W/f (9.84W/m)±10% |
| Heating Element Size | 40ʹ(12.2 m) to 800ʹ(243.8 m) |
| Bending radius | 1″ (25.4mm) |
| Cable Diameter | 1/8″-1/6″ (3.2mm-4.2mm) |
| Conductor Insulation | Fluoropolymer |
| Outer Insulation | Fluoropolymer or PVC |
| Max. Ambient Temp | 85℉(30℃) |
| Min. Installation Temp | 40℉(5℃) |
| Cold lead | 10f (3m) length |
Below is datasheet:
| 120V | Length | Approximate heat coverage (sq.ft.) | Watts (3W/ft.) | Amps | ohms | |||
| Catalog Number | ft. | m | 2″ spacing | Standard 3″ spacing | 4″ spacing | |||
| WarmCable-0120-1 | 40 | 12.2 | 5 | 10 | 15 | 120 | 1 | 120 |
| WarmCable-0180-1 | 60 | 18.3 | 10 | 15 | 20 | 180 | 1.5 | 80 |
| WarmCable-0240-1 | 80 | 24.4 | 15 | 20 | 25 | 240 | 2 | 60 |
| WarmCable-0300-1 | 100 | 30.5 | 18 | 25 | 35 | 300 | 2.5 | 48 |
| WarmCable-0360-1 | 120 | 36.6 | 20 | 30 | 40 | 360 | 3 | 40 |
| WarmCable-0420-1 | 140 | 42.7 | 23 | 35 | 50 | 420 | 3.5 | 34.3 |
| WarmCable-0480-1 | 160 | 48.8 | 25 | 40 | 55 | 480 | 4 | 30 |
| WarmCable-0540-1 | 180 | 54.9 | 30 | 45 | 60 | 540 | 4.5 | 26.7 |
| WarmCable-0600-1 | 200 | 61 | 35 | 50 | 65 | 600 | 5 | 24 |
| WarmCable-0720-1 | 240 | 73.2 | 40 | 60 | 80 | 720 | 6 | 20 |
| WarmCable-0840-1 | 280 | 85.3 | 45 | 70 | 95 | 840 | 7 | 17.1 |
| WarmCable-0960-1 | 320 | 97.5 | 55 | 80 | 105 | 960 | 8 | 15 |
| WarmCable-1080-1 | 360 | 109.7 | 60 | 90 | 120 | 1080 | 9 | 13.3 |
| WarmCable-1200-1 | 400 | 121.9 | 65 | 100 | 135 | 1200 | 10 | 12 |
| 240V | Length | Approximate heat coverage (sq.ft.) | Watts (3W/ft.) | Amps | ohms | |||
| Catalog Number | ft. | m | 2″ spacing | Standard 3″ spacing | 4″ spacing | |||
| WarmCable-0240-2 | 80 | 24.4 | 15 | 20 | 25 | 240 | 1 | 240 |
| WarmCable-0360-2 | 120 | 36.6 | 20 | 30 | 40 | 360 | 1.5 | 160 |
| WarmCable-0480-2 | 160 | 48.8 | 25 | 40 | 55 | 480 | 2 | 120 |
| WarmCable-0600-2 | 200 | 61 | 35 | 50 | 65 | 600 | 2.5 | 96 |
| WarmCable-0720-2 | 240 | 73.2 | 40 | 60 | 80 | 720 | 3 | 80 |
| WarmCable-0840-2 | 280 | 85.3 | 45 | 70 | 95 | 840 | 3.5 | 68.6 |
| WarmCable-0960-2 | 320 | 97.5 | 55 | 80 | 105 | 960 | 4 | 60 |
| WarmCable-1080-2 | 360 | 109.7 | 60 | 90 | 120 | 1080 | 4.5 | 53.3 |
| WarmCable-1200-2 | 400 | 121.9 | 65 | 100 | 135 | 1200 | 5 | 48 |
| WarmCable-1320-2 | 440 | 134.1 | 75 | 110 | 145 | 1320 | 5.5 | 43.6 |
| WarmCable-1440-2 | 480 | 146.3 | 80 | 120 | 160 | 1440 | 6 | 40 |
| WarmCable-1680-2 | 560 | 170.7 | 95 | 140 | 190 | 1680 | 7 | 34.3 |
| WarmCable-1920-2 | 640 | 195.1 | 105 | 160 | 210 | 1920 | 8 | 30 |
| WarmCable-2160-2 | 720 | 219.5 | 120 | 180 | 240 | 2160 | 9 | 26.7 |
| WarmCable-2400-2 | 800 | 243.8 | 135 | 200 | 265 | 2400 | 10 | 24 |
