Self-regulating and limit the power output
Reducetheoverheating possibility of tube and heating cable
length can be cut as required
Applied for hazardous area
Excellent corrosion and chemical corrosion properties
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience" title="Over 25 Years of Manufacturing Experience
">Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America" title="Complete Test Reports For Europe And America
">Complete Test Reports For Europe And America
Technical Support Team Assist Your Product Design" title="Technical Support Team Assist Your Product Design
">Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery" title="Complete Production Lines Support Fast Delivery
">Complete Production Lines Support Fast Delivery
Supports One Stop Sourcing" title="Supports One Stop Sourcing
">Supports One Stop Sourcing

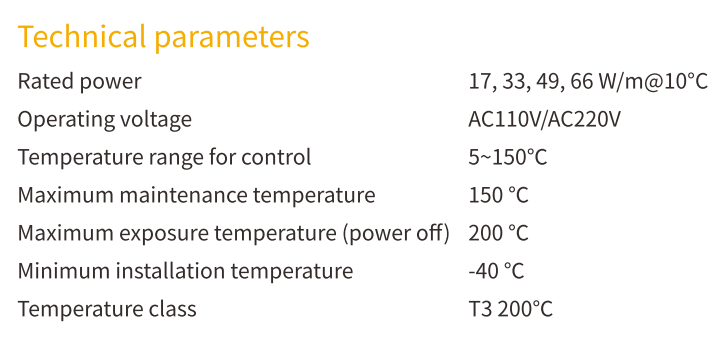

Antifreeze or process temperature maintenance Temperature range of the pipeline:5-150℃
Freeze protection and process temperature maintenance
Temperature Range for tube:5~120℃ HTS self-regulator heating cable is suitable for freeze protection application under intermittent steam purge and process temperature maintenance of high exposure temperature pipeline, maximum exposure for HTS is 200 deg C.

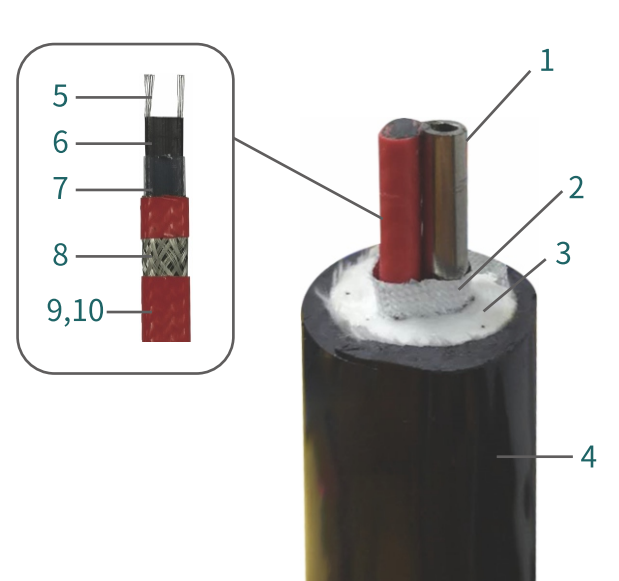

Process pipeline
Heat reflecting layer
Moisture-proof fiberglass wool insulation layer
Polymer outer sheath
Nickel-plated copper busbar
PTC semiconductor material
Fluorine-containing polymer insulation layer
Tinned copper wire braiding layer
CT-fluorine-containing polymer material
● Self-regulating properties
● It can be cut into any length
● It can be used for the explosion hazard environment
● Consistent heat transfer and thermal performance
