HTM In Pipe Heating Cable

Your In-Pipe Heating Cable Supplier In China

Jiahong In Pipe Heating Cable is one of our primary Self Regulating Heating cable for various pipes heating. This cable provides heat compensation to the object that temperature is below 150°F (65°C). For example, it can keep the water flowing at -40°C.

However, Jiahong In-Pipe Heating Cable has mainly used to a small plastic or metal pipes that their diameter is between 1 and 20cm.

Popular Models are

3w/ft.,

5w/ft.,

8w/ft.,

10w/ft

for both U.S and European markets.

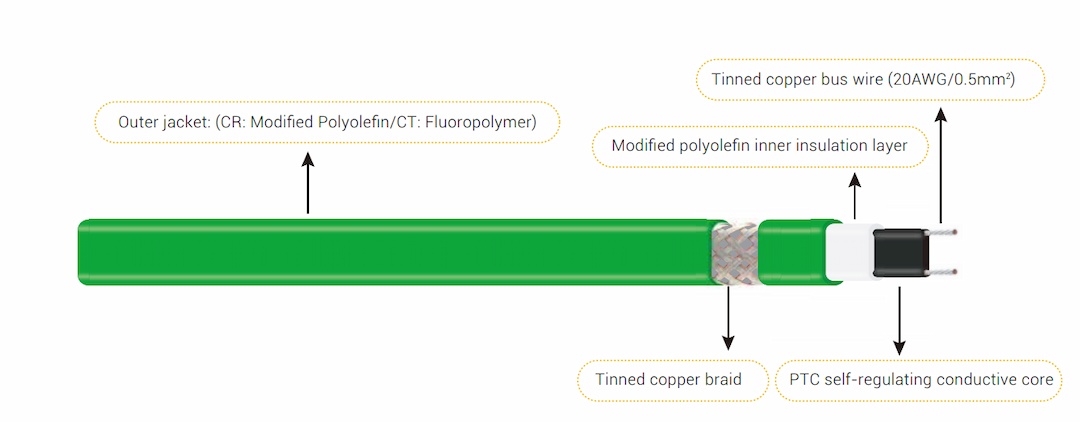

Jiahong In Pipe Heating Cable has a strong structure design with five layers:

• Tinned copper Bus Wire

• Semi-conductive Materials Layer

• Internal flame retardant polyolefin insulation

• Tinned copper braid

• External flame retardant polyolefin/fluoropolymer plastic protective layer

The structure design makes it easy to shield electromagnetic radiation and resist chemical corrosion. So you can use the cable in a hazardous environment as well.

Jiahong produces this type of heating cable for over 10 years. We are one of the few original manufacturers in this field. Now we are able to provide you all the necessary certificates to develop markets. And you can get 24X7 technology support online.

Features & Benefits:

Self Regulate Heat Out In Respond To Temperature Change;

High chemical resistance

Easy to install

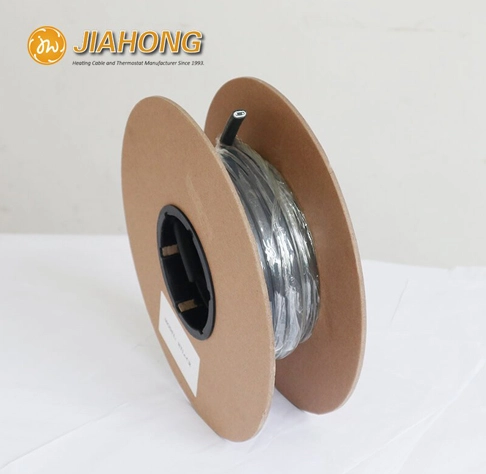

Can be cut to length off the roll

Connection by plug-in connectors

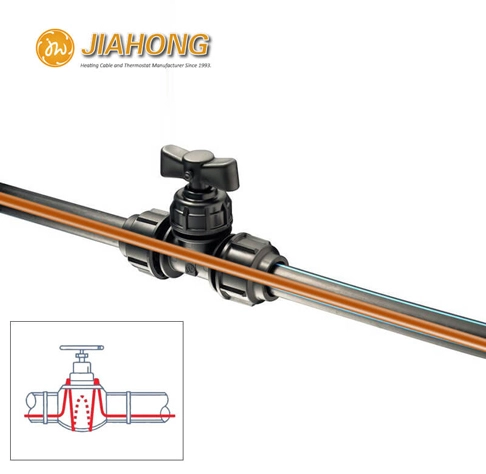

Typical Application:

PVC pipes, Metal Pipes, Valves, Flanges

Residential Fire Pipes

Water Pipes Freeze Protection;
