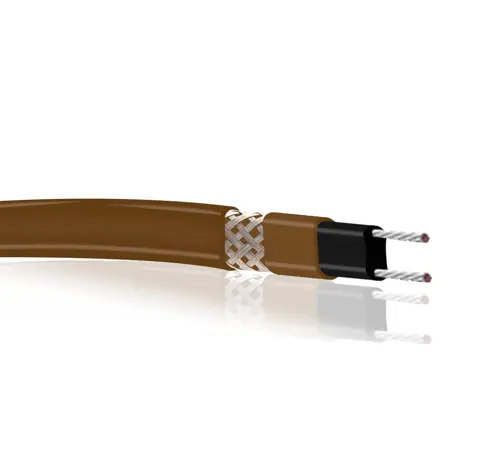

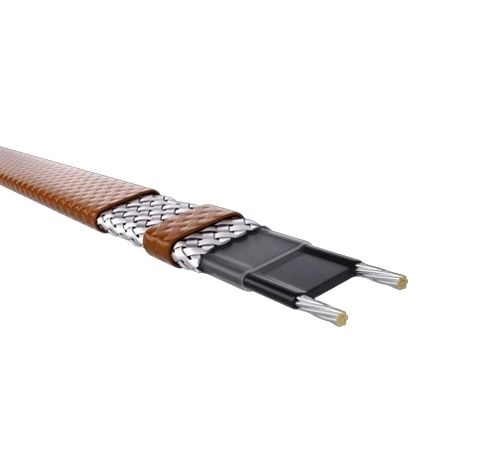

HTP Heat Trace Wire

- Medium-temperature Heat Tracing Cable for Industrial Applications;
- The Continuous exposure capability is375°F (190°C);
- Cutto any length;
- No Overheat or burnout Even when Wrapped Over Itself(Overlapped);
- Jiahong Provides Power Connection, Splice, Tee, End Seal Kits and other Related Accessories;
- Suitable for use in Non-hazardous, Hazardous and Corrosive Environments.
Reach out to us today to request a quote for our state-of-the-art self limiting heater materials.

Request A Quote

Features
Specification

Heat Trace Wire

Jiahong Heat Trace Wire, also known as heat tracing cable, heat tape, is designed to provide heat compensation solutions for various applications. Its continuous exposure (maintain) capability up to 225°F (110°C) and intermittent exposure capability up to 392°F (200°C or 250 psi steam).

Features of HTP Heat Trace Wire

If you need to maintain the container, vessel, or pipes between 65°C and approx. 110°C, then this heat trace wire is your best option.

Currently, Jiahong HTP Heat Trace Wire has four different types for whole European and American markets:

5 Watts per ft. (17w/m),

10 Watts per ft. (33w/m),

15 Watts per ft. (45 w/m),

20 Watts per ft. (66w/m).

You can find their performance curve in the right.

Features & Benefits:

Adaptable heat output
High chemical resistance
Easy to install

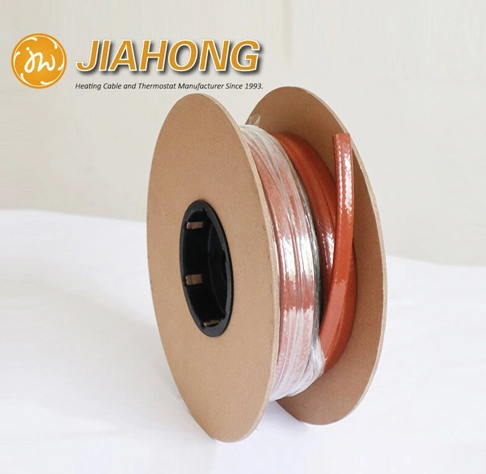

Can be cut to length off the roll
Connection by plug-in connectors

Jiahong heat trace wire is suitable for use on supply voltages of both 110-120 VAC and 208-277 VAC.

HTP Tech Parameter
Service voltage	110-120V, 220-277V)

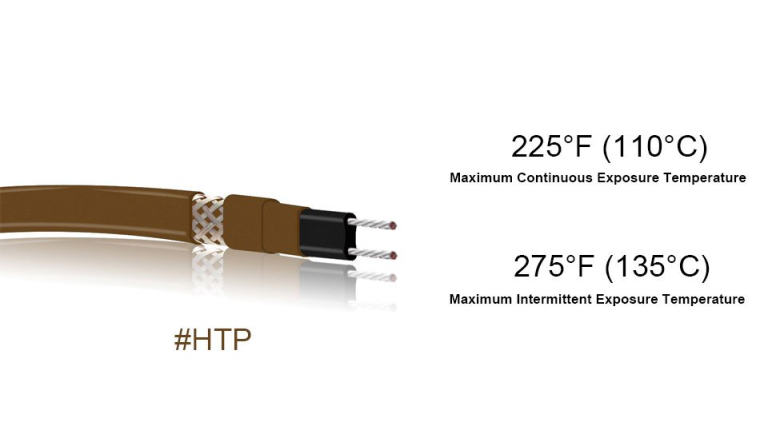

Maximum maintain or continuous exposure temperature(power on)	+110℃(230'F)
Maximum intermittent exposure Temperature, 100 hours(power on or of	+135℃(275'F
Minimum installation temperature	-40℃(-40'F)
Protective braid resistance	< 18.20/km
Bus wire gauge	16AWG
Approvals	IECEx/ ATEX/ EAC/CE

Typical Application:

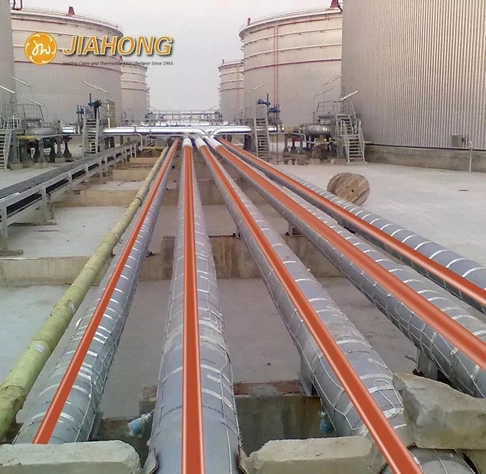

Oil & Gas Pipes Frost Protection;

Industrial Process Temperature Maintenance;

Roof Gutter Snow Melting & Frost Protection;

And More.

Maximum circuit length (in feet) per circuit breaker
	Ambient temperature at start-up		120V				240V
	Ambient temperature at start-up		15A	20A	30A	40A	15A	20A	30A	40A
5HTP	50℉	10℃	195	195	195	195	390	390	390	390
	32℉	0℃	195	195	195	195	390	390	390	390
	14℉	–10℃	195	195	195	195	370	390	390	390
	0℉	–18℃	170	185	195	195	340	370	390	390
	–20℉	–29℃	160	170	195	195	320	340	380	390
	–40℉	–40℃	150	160	170	195	300	320	370	390
10HTP	50℉	10℃	100	130	195	195	200	265	390	390
	32℉	0℃	95	120	185	195	190	240	370	390
	14℉	–10℃	90	110	175	195	180	220	350	390
	0℉	–18℃	80	105	160	195	160	210	320	390
	–20℉	–29℃	70	95	145	195	145	195	295	390
	–40℉	–40℃	65	90	135	180	135	180	275	365
15HTP	50℉	10℃	75	100	150	200	160	210	320	340
	32℉	0℃	70	90	140	190	140	190	280	340
	14℉	–10℃	65	85	130	170	135	175	260	340
	0℉	–18℃	60	80	120	160	125	170	255	340
	–20℉	–29℃	55	70	110	145	115	155	235	315
	–40℉	–40℃	50	65	100	135	110	145	220	290
20HTP	50℉	10℃	60	80	120	160	120	160	240	320
	32℉	0℃	55	75	110	150	110	150	220	300
	14℉	–10℃	50	70	100	135	100	140	200	270
	0℉	–18℃	45	60	95	125	95	125	190	255
	–20℉	–29℃	40	55	90	115	85	115	175	235
	–40℉	–40℃	40	55	85	110	80	110	165	220
