Mineral Insulation Heating Cable #MI

Mineral Insulated Heating Cable Description

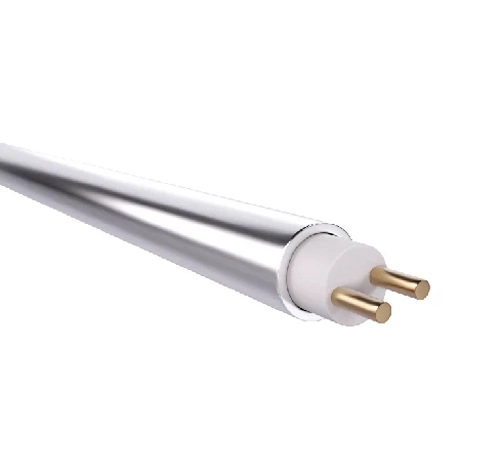

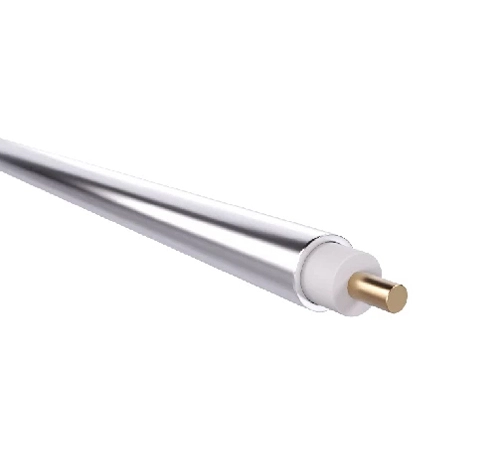

Jiahong MSF mineral insulation heating cable are common used in the area where required high maintain temperature, high exposure temperature and high power output, like high temperature pipeline and high exposure temperature (within/out steam purge) of pipeline and vessel. Theoretically the maximum power output for MI heating cable will be 269W/m, then the maximum maintain temperature is about 800 C, also the maximum withstand temperature will be 800 C. Single-core (MSF-1) & twin-core (MSF-2) are both for MI heating cable, as well as different resistance spec, so the heating cable can be suitable for different voltage level (Shown in certifification) and electrial connection, as well as to the heat tracing requirement for different type or length of pipeline and vessel. MI heating cable is protected by metal outer jacket, which can be chemical resistance and corrosion resistance.

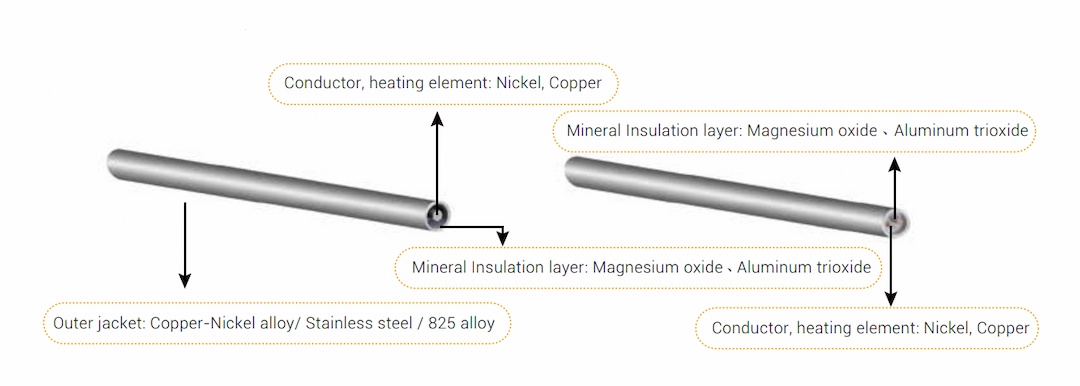

The core is heating conductor element, as well as Magnesium oxide layer and metal outer jacket are to be added to form a complete structure of MSF heating cable from inside core to outside.

Product Feature:

• MSF heating cable is certifified by IECEx, ATEX, NEPSI China and EAC Russia, including explosion-proof application, which can be used in the explosion area and ordinary safety area.

• Simple installation and stable power output of unit length.

• MSF heating cable can suitable for application under the condition which needed high power output, high withstand temperature and chemical resistance and corrosion resistance

• Different electrial power connection to achieve the heat tracing requirement in most economic and optimization.

• It has a complete series of accessory, including standard power box, splice/tee connection box and end seal box etc, which can ensure the long service life of the product
