MiniCable-S Floor Heat Cable

Features of MiniCable-S Floor Heating Cable

MiniCable-S Floor Heating Cable manufactured by Wuhu Jiahong is a kind of single-conductor tile heating cable. This underfloor heating cable is mainly designed for European Markets.

The electric underfloor heating cable can not only be used for the living room and bedroom, but is also safe in the bathroom, basement, kitchen room, and other wet locations. The regular types are 10w/m, 11w/m and 11.5w/m.

Jiahong Underfloor Heating Cable heats up through the inner conductor. The electric underfloor heating cable cannot be cut in any situation because the length and power of the constant wattage cable are deterministic.

Any different parts cannot overlap with each other, as well. The rated voltage is 230v. The maximum ambient temperature is 85oF (30oC), and the minimum installation temperature is 40oF (5oC).

The single-conductor structure requires two different power source connections.

Jiahong electric underfloor heating wire contains four different components: inner conductor, conductor insulation, shield, and outer jacket.

The inner conductor is made of tinned copper. It is the main element, and it is not only the conductor but also the heating element. The insulation is required to withstand the high temperature and high voltage.

It is common to use fluoropolymers such as ETFE or FEP. The shield is made of tinned copper, and it can screen electromagnetic radiation generated inside.

Meanwhile, it can provide ground protection. The outer jacket is usually made of 100% waterproof PVC. This ensures it can be used in wet locations.

It has a simple and stable structure that can serve for more than 30 years.

Jiahong Underfloor Heating Cable should work with an accurate thermostat.

The thermostat is used to monitor and detect indoor temperature and floor temperature, then respond appropriately to this change. Jiahong Underfloor Heating Cable is suitable for all popular thermostats on European markets.

You may also choose our thermostats as well. Jiahong electric underfloor heating wire is flexible to install because it is a loose floor heating cable.

There is no fixed cable space, so you can arbitrarily decide the cable spacing within the range we specify. This flexible installation is a perfect choice for the DIY enthusiasts.

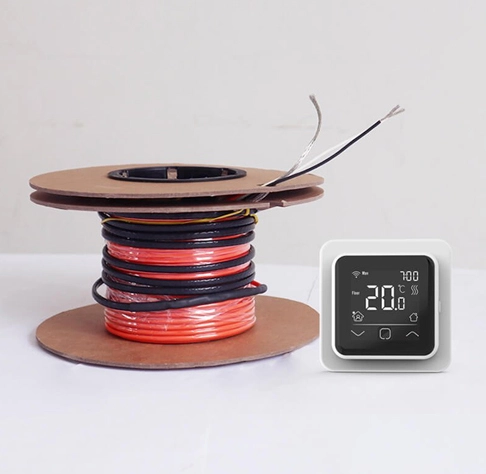

Jiahong Underfloor Heating Cable is generally delivered with a complete heating cable. It consists of two different components: heating cable and cold lead.

The cold lead is a 2.5meter regular electric wire with plug. Jiahong Underfloor Heating Cable is packed in wooden spools or plastic spools with a specific length.

The regular lengths range from 7.5 to 250.5m for the 10w/m type. For the 11W/m type, the lengths range from 9.1 to 163.6m. While for the11.5W/m type, the lengths range from 17.4 to 152.2m.

It can also be made into a heating mesh or heating mat. Every Jiahong Underfloor Heating Cable is rigorously tested before packing. Any functional problems found are solved before the packing.

And Testing standards conform to CSA regulations. What’s more, Jiahong Radiant Floor Heating wires can work normally for more than 30 years and they have a 25-year warranty.

Every Radiant Floor Heating Cable have been approved by CE and EAC.
