Jiahong's #ET-43 temperature thermostat is a new manual thermostat in 2022, which is suitable for electric floor heating systems.
Creative design, Easy to operate
Fits many Mid-frameswith an inner size of 56*56mm
With floor sensor and room sensor,support open windows function
Support 2Years Factory Warranty

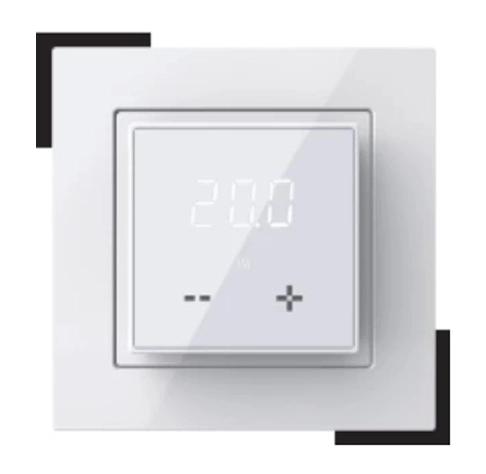

ET-43 manual thermostat is a high-quality thermostat with minimalist design.
The manual thermostat is designed to accurately control the floor temperature, with a maximum load of 3600W/16A. Our manual thermostat has a floor sensor and a room sensor. The biggest feature is that the ET-43 manual thermostat is compatible with Schneider Unica series, Legrand Valena series and many frames with an inner size of 56*56mm, such as Schneider Exxact.
The ET-43 manual thermostat can match the 56*56mm inner size frame represented by Schneider Exxact, as well as Schneider Unica and Legrand valena frames. Users can choose according to their needs. Jiahong's manual thermostat has a floor sensor and a room sensor, Used to select the sensor to work.
Wall Design, Easily Installed
Different sensor types
Sensor selection: floor sensor and room sensor
Off time frost protection
Floor high temperature protection
For Commercial and Residential Applications
Touch screen | LCD display |
Model Number | ET-43 |
Type | underfloor heating thermostat |
Size | 86*86*19(mm) |
Voltage | 120~240Vac 50/60Hz |
Standby power | < 1W |
Max Load | 16A(Resistive load) |
Wiring specification | ≤2.5mm² |
Ambient temperature | -5℃~50℃ |
IP Class | IP21 |
Sensor Application | Floor sensor & room sensor |
Floor Sensor Type | 3950 10K; 3700 10K; 3600 12K; 3380 10K; 15K |
Floor temperature limit protection | 30℃ |
