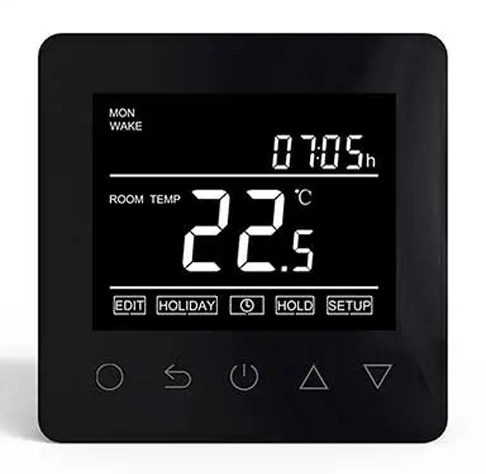

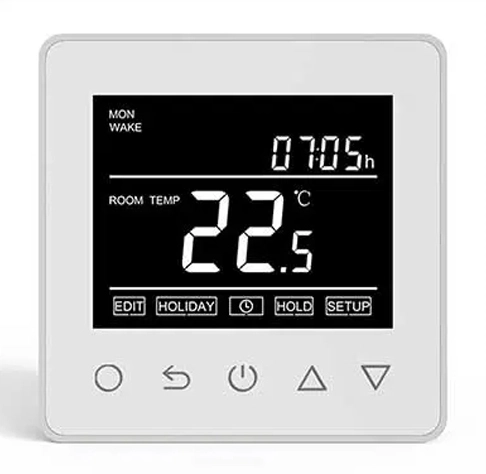

#ET-61 thermostat is designed to offer an intelligent temperature regulation solution to the floor heating system. It is suitable for both electric floor heating system and water floor heating system.
LCD Display Screen is easy to read;
Free APP Available for IOS and Android;
Controlled By Smart Phone via Wifi Connection;
Wall Design, Easily Installed;
Sensor selection;
Off time frost protection;
Floor high temperature protection;
For Commercial and Residential Applications
Water heating system and Electric Heating System
Weekly program with each day programmable
℃ OR ℉ alternative
Prevent others from inappropriate moving
Full touch button operate weekly program parameter
Technical data | |
Power Supply Voltage | 85V ~265V, 50/60Hz |
Maximum Switching Current | 15A |
Temperature Setting Range | 5-40℃ |
Sensor Temperature Detecting Range | 0-45℃ |
Temperature Accuracy | 0.5℃ |
Standby Power | <1W |
Dimension | 87*87*16(mm) |
IP Rating | IP20 |
Wire Diameter | ≤2.5mm² |
Display Screen Function | Time Display, Holiday Function, Key-Lock, Hold function, Frost symbol |
