JH-Trace-S series typical steam tracing tubing bundle is mainly used for freeze protection or process temperature maintenance within the temperature range of 5-121 degree C which is designed to freeze protection or temperature maintenance to metal and non-metal tube. It is suitable for process analyzer, smoke &gas analyzer and the pressure guide pipeline connecting to flow transmitters &pressure transmitters with steam or high temperature liquid as the preferred heat tracing medium.
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience" title="Over 25 Years of Manufacturing Experience
">Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America" title="Complete Test Reports For Europe And America
">Complete Test Reports For Europe And America
Technical Support Team Assist Your Product Design" title="Technical Support Team Assist Your Product Design
">Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery" title="Complete Production Lines Support Fast Delivery
">Complete Production Lines Support Fast Delivery
Supports One Stop Sourcing" title="Supports One Stop Sourcing
">Supports One Stop Sourcing

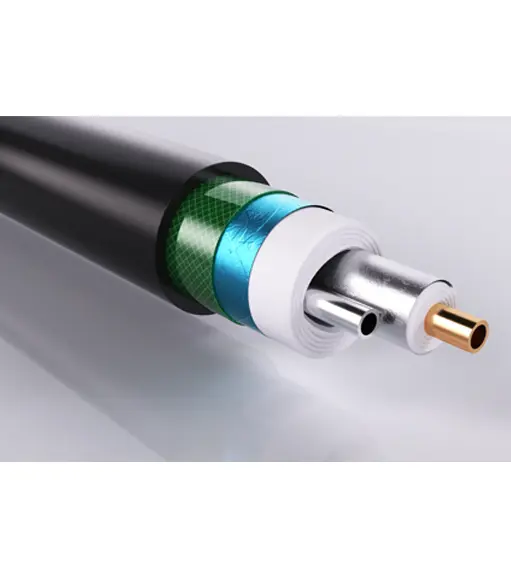

Overview the whole structure, the JH-Trace-S series steam tracing tubing bundle is a design structure of steam tracing pipe isolated from the process pipeline, the consistency of heat transfer and heat performance on the whole length is beneficial to the heat tracing pipe and process pipe, and different from field equipment and insulation pipe bundles, the series of prefabricated insulation pipe design has excellent weather-proof ability and long-term reliability.

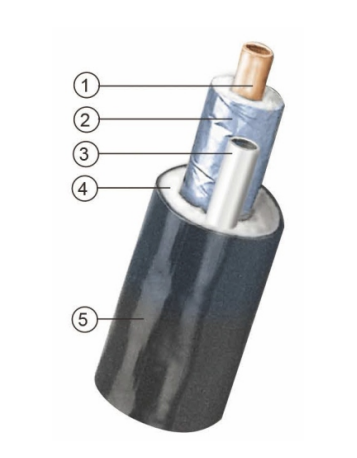

Process pipeline
High-temperature glass fiber wool insulation layer
Steam tracing tube
Moisture-proof glass fiber insulation tape
Polymer outer sheath
Superb weather-proof capability
Long rolls, minimizing the waste
