Warm-M Electric Floor Wamming Mat

Electric Floor Warming Mat

Jiahong Electric Floor Warming Mat is designed to provide heat for any kind of floor in cold weather as a part of an electric floor heating system. It is widely used on ceramic or porcelain tile, stone or brick floors, engineered wood floors, laminate floors, solid floors, and so on.

Graphic: Floor Heating

Jiahong Floor Warming Mat that is a popular type in the North America market is the 12W/ft² (130W/m²).

The cable is suitable for use on supply voltages of both 120Vac and 240 Vac. The 120Vac heat mat is suitable for the 10ft²-100ft² heated area. The 240Vac electric floor mat can be applied on about 20ft²-160ft² location.

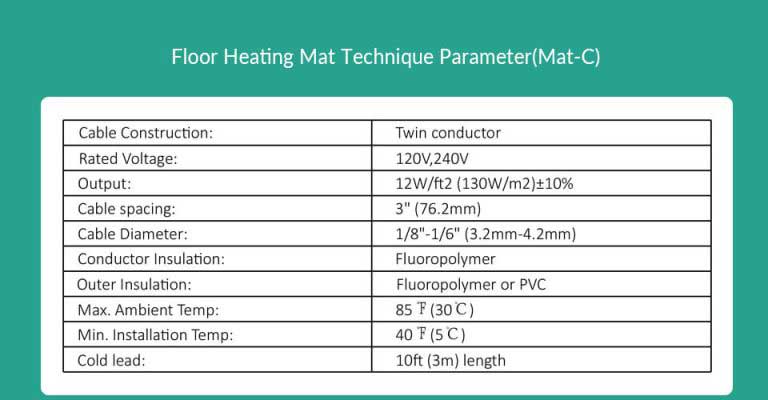

Graphic: Warm-C Floor Warming Mat Technical Parameter

The maximum ambient temperature is 85°F (30^oC), and the minimum installation temperature is 40°F (5^oC).

All Jiahong Electric Floor Warming Mat consists of three different components: fiberglass or nylon mash, heating element, and 10ft (3M) length standard cold lead.

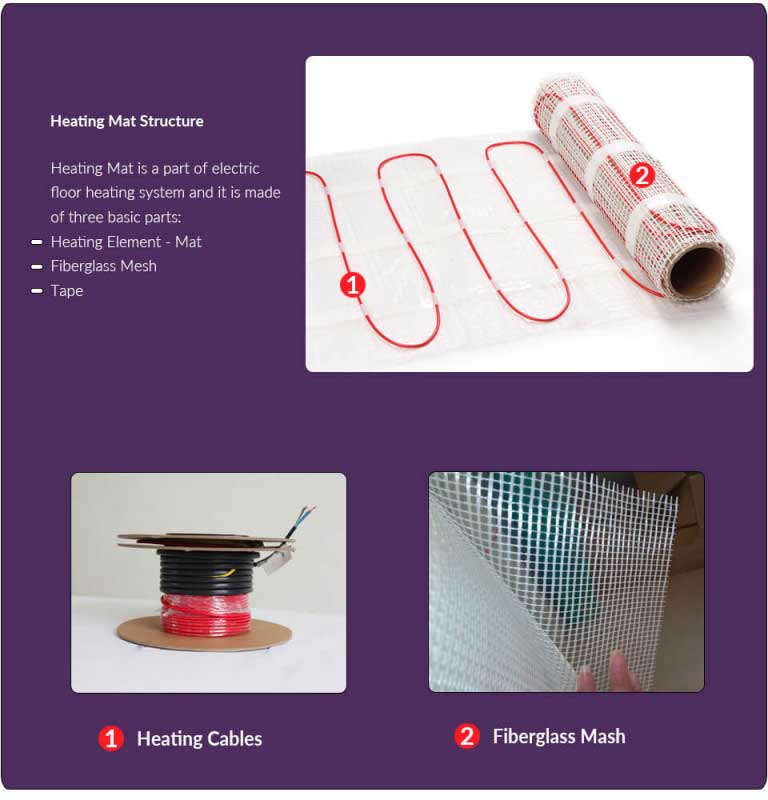

Graphic: Heating Mat Components

North America customers often adapt standard size fiberglass mash, and regular width is 48cm or 50cm. It is only 3.6mm thick, and the back of the mash has a double-sided tape which makes it easy to install.

The heating element is a kind of constant wattage heating cable with a twin conductor. The twin conductor structure supports a single-point connection.

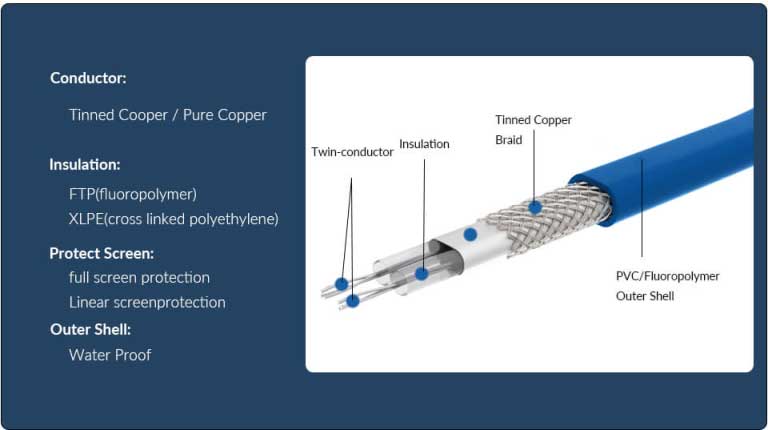

Graphic: Heating Element Components

This heating element is also called a floor heating cable. The inner conductor is made of tinned copper.

The insulation is made of Fluoropolymer which is characterized by high temperature and high-pressure resistance.

The external braid layer is made of tinned copper as well. It can be used for grounding protection. Finally, the cable is covered with a 100% waterproof PVC. It is a reasonable structure that allows it to be used for more than 30 years.

Jiahong Electric Floor Warming Mat is a unique, easy and quick underfloor heating solution. It is widely used in bathrooms, kitchens, basements and other wet or dry areas in your house.

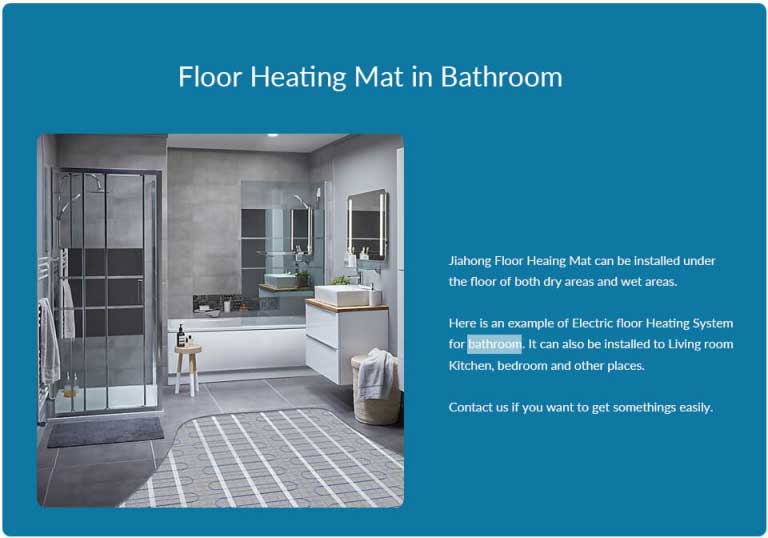

Graphic: Floor Heating Mat in Bathroom

A heated floor mat is also common in spas and destination resorts, new construction or renovation.

Jiahong Electric Floor Warming Mats are simply laid out on the floor in the area you want to heat prior to floor installation.

The pressure-sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag-free while allowing the mats to be easily repositioned when necessary.

The mats can be rolled out quickly across the floors reducing installation time by 35% – for a truly fast and secure method of electric underfloor heating installation.

In the process of installing the StickyMat system, flexible tile adhesive and self-leveling compound may be required.

Every Jiahong Electric Floor Warming Mat requires an extra precise heating thermostat. And Jiahong Electric Floor Warming Mat can match most types of thermostats in the market.

The thermostat connects to the heating cable and adjusts the heat output, which dramatically reduces heat-up times by at least 50%.

Jiahong provides a relevant thermostat as well.

Jiahong Electric Floor Warming Mat are generally packed with a color box or blank box. For regular types, we accept small MOQ and short lead time.

You may also customize your package such as a corrugated box, ads stickers, etc. Besides, our design department is glad to provide professional suggestions and the true case for reference.

Jiahong Electric Floor Warming Mat is approved by UL and CSA. Besides, it comes with a 25-year warranty, which is the longest in the industry.

So it is ideal for use as a primary heat source and in rooms with high heat-loss such as conservatories.

Jiahong Electric Heating Mat is normally used under ceramic tiles or natural stone in rooms or heating for residential.

It increases comfort in your home, and office, as well as in your showroom or entrance hall.

The two conductors mean the cable itself is in the circuit; all the wiring is at the same end.

So, it is more convenient than a single conductor in that the construction, only needs a single point connection.

Jiahong Electric Heating Mat includes a heating cable woven onto an adhesive-backed fiberglass mesh that allows for sample roll-out insulation without worrying about heating cable spacing.

Are underfloor heating mats from Europe compatible with US electrical systems?

The compatibility of underfloor heating mats from Europe with US electrical systems needs to be looked at specifically to see if the electrical specifications of the underfloor heating mats and the US electrical standards match. If the two match in terms of voltage, frequency and electrical safety, then the underfloor heating mats are compatible with US electrical systems.

Specification of Warm-M Electric Floor Wamming Mat
