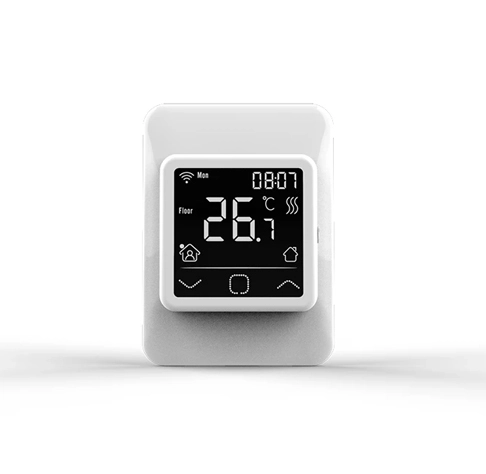

ET-85 WiFi thermostat is designed to offer an intelligent temperature regulation solution to the electric underfloor heating system.

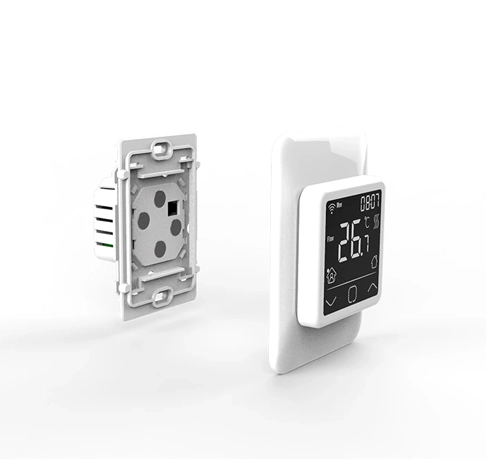

Magnet installation way
Two Versions Available: With Wi-Fi Module Or Without Wi-Fi Module;
WarmmeTMAPP Support Remote Data Setting;
VA Screen, Touch Key, Large Letter Display;
Retaining Wall Design, More Security;
Floor High Temperature Protection.
Week Programmable, 5+1+1 (working day, Saturday, Sunday) or 7days Programming;
Auto mode, Manual mode and Anti-frozen mode is available
Air Sensor and Floor Sensor;
Energy consumption calculation.
| Technical data | |
| Power Supply Voltage | 85V ~265V, 50/60Hz |
| Maximum Switching Current | 15A |
| Temperature Setting Range | 5-40℃ |
| Sensor Temperature Detecting Range | 0-45℃ |
| Temperature Accuracy | 0.5℃ |
| Standby Power | <1W |
| Dimension | 87*87*16(mm) |
| IP Rating | IP20 |
| Wire Diameter | ≤2.5mm² |
| Display Screen Function | Time Display, Holiday Function, Key-Lock, Hold function, Frost symbol |
