HTS Heat Trace Cable

    • Energy Efficient, Automatically Varies its Power Output in Response to Pipe Temperature Changes;

    • PTC Core Materials Are Made By Ourselves;

    • Provide High-Temperature Thermal Compensation for Large Industrial Pipes;

    • Not Overheat or Burnout Even when Wrapped Over Itself (Overlapped);

    • Cut-to-length according to practical requirements;

    • Jiahong Provides Power Connection, Splice, Tee, End Seal Kits and other Related Accessories;

    • Suitable for use in Non-hazardous, Hazardous and Corrosive Environments;


Request A Quote
  • Features
  • Specification
  • Jiahong Heat Trace Cable comes in many sizes and structure designs. you can also call it high-temperature heat tracing cable or heat tape. It is primarily designed to provide thermal compensation solutions for large industrial pipes.

    The Cable has a continuous exposure (maintain) capability of up to 302°F (150°C) and intermittent exposure capability of up to 482°F (250°C).

    Waterproof, anti-inorganic, anti-friction, anti-extrusion, and thus suitable for general and hazardous environments.

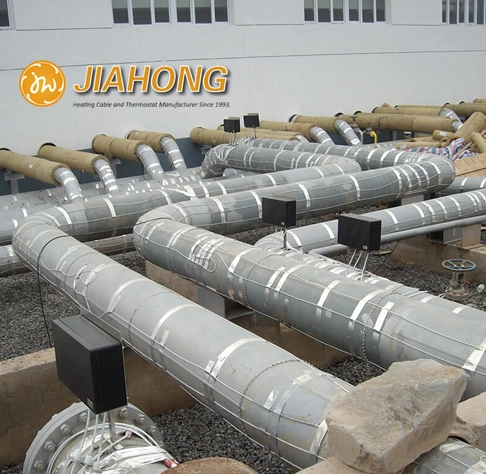

    Typical Application

    Chemical and Pharmaceutical Industry;

    Food and Beverage Processing Industry;

    Marine Ship & Boats Industry;

    Mining;

    Oil and Gas, etc.

    Jiahong heat trace cables are suitable for European and North American Markets. Currently, We are providing four popular types in the markets:

    5 Watts per ft. (17w/m),

    10 Watts per ft. (33w/m),

    15 Watts per ft. (45 w/m), and

    20 Watts per ft. (66w/m).

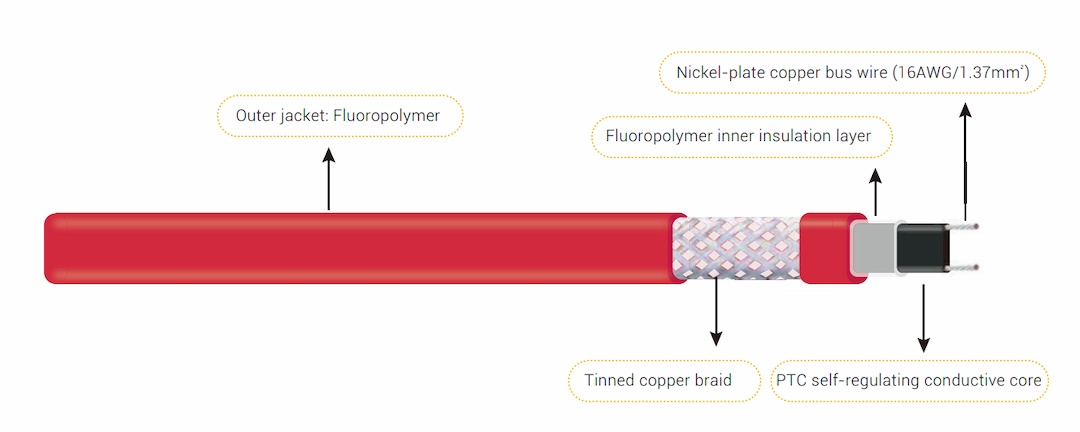

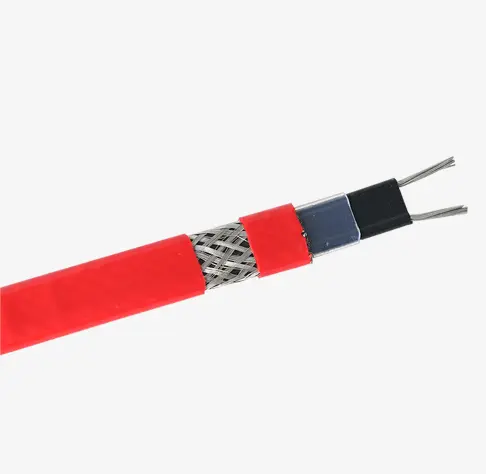

    All Jiahong Heat Trace Cables are available for your special applications. As we know, there are five different layers of structure for every self-regulating heating cable. They are:

    – Inner Metal Bus Wire;

    – Semi-conductive heating matrix;

    – Inner Plastic Insulation;

    – Tinned Braid Net;

    – Outer Plastic Jacket.

    You can customize an environment-friendly heating cable to adapt to the laws of your country.

    Jiahong is your reliable manufacturer of heat trace cable. We have been worked for European and American markets for over 10 years. Jiahong heat trace cable is approved by CE, ATEX, IECEX, and EAC. All SR heating cables come with a 10-year warranty, which is the longest in the industry.


    Q: Could you provide a professional Installation Service?

    A: Sure. We are glad to provide design and installation services for end projects. We have many large industrial heat tracing projects right now. For example thermal power plants, oil refineries, etc.


    Q: Is your heat trace cable available for any length?

    A: The Cable can be cut to any length to meet your requests.


    Q: Can I have some printed information on the cable?

    A: Sure. You can find the image as below.

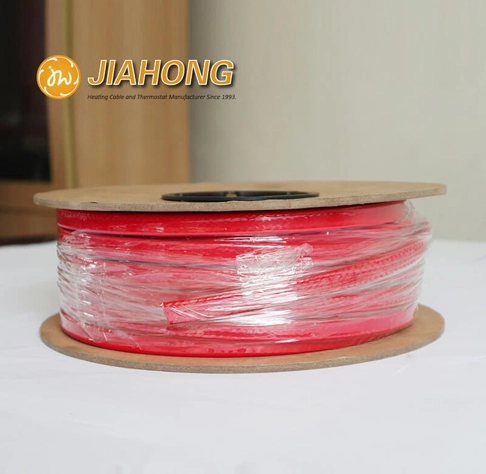

    Q: What types of pack?

    A: Generally packed in wooden spools or plastic spools, 250ft, 500ft and 1000ft a spool.


  • Maxim um circuit le ngth (in feet) per circuit breaker

    Ambient temperature

    at start-up

    120V
    240V
    15A20A30A40A15A20A30A40A
    5HTS50'F(10℃)180240360385360480720765
    32'F(0℃)180240360385360480720765
    14'F(-10℃)170220340385340440680765
    0'F(-18℃)160210320385315420625765
    -20'F(-29℃)150200305385300395595765
    -40'F(-40℃)145195290385285380570765
    10HTS50'F(10℃)110145220270220295440540
    32'F(0℃)110145220270220295440540
    14'F(-10℃)100140205265200280410540
    0'F(-18℃)95130195260195260385540
    -20'F(-29℃)95125190250195250370540
    -40'F(-40℃)90120180240175240355540
    15HTS50'F(10℃)75100160160140200315315
    32'F(0℃)75100160160140200315315
    14'F(-10℃)70100160160135200315315
    0'F(-18℃)6595150160130175275315
    -20'F(-29℃)6090145160125165260315
    -40'F(-40℃)5585135160120155245315
    20HTS50'F(10℃)5585130140115155245275
    32'F(0℃)5585130140115155245275
    14'F(-10℃)5080125140100140220275
    0'F(-18℃)5080120140100140215275
    -20'F(-29℃)457511514090130205275
    -40'F(-40℃)457011014090125190265
