Suitable for Single point connection;
Popular in European Markets;
Emits zero EMF (electromagnetic fields);
Safe – approved for wet locations;
Flexible installation, Suitable Various Shapes locations;
Sticky Structure and Non-sticky Structure are Available;
25 years limited warranty;
Jiahong Mat-D radiant heat mat is the most popular electric floor heating system in Europe. It is suitable for almost floor types, including ceramic tile, stone tile, engineered wood floor, laminate floor. Mat-D is safe for both dry and wet environments. So you can install this floor warming system in your living room, bathroom, kitchen, even in your basement. Jiahong Mat-D radiant heat mat has already got CE, EAC, TUV approval. You can freely sell it at your local markets. Meanwhile, we also provide a 30-year factory warranty.
Top 1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America
Technical Support Team to Assist Your Product Design
CompleteAutomatic Production Lines Support Fast Delivery
Allows Third Party Audit and ISO2008Quality Audit
Jiahong Radiant Heat Mat, also known as under tile Heating Mat, is designed to provide heat for any kind of the floor in the cold weather. It is widely used on ceramic or porcelain tile, stone or brick floors, engineered wood floor, laminate floor, solid floor and so on. This heating mat is very popular in Europe markets, especially in the UK.
Jiahong Radiant Heat Mat is available in two popular types in Europe: 100W/m2 and 150W/m2. The voltage ratings are 230 Vac. The cable is suitable for use on supply voltages of 208-277 Vac. The maximum ambient temperature is 85°F(30oC), and the minimum installation temperature is 40°F(5oC).

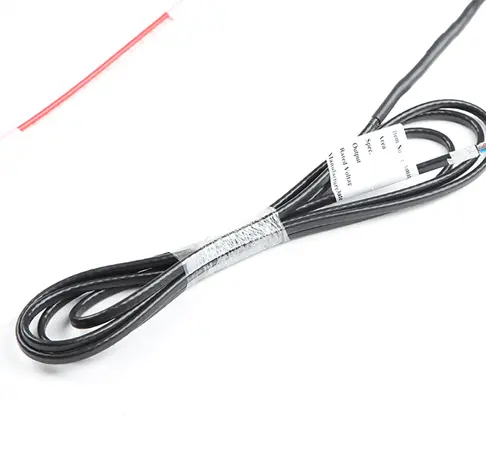

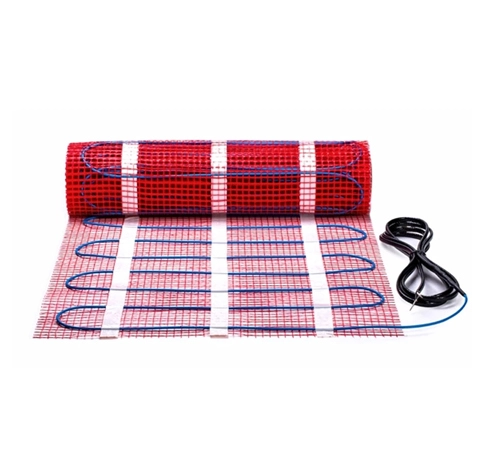

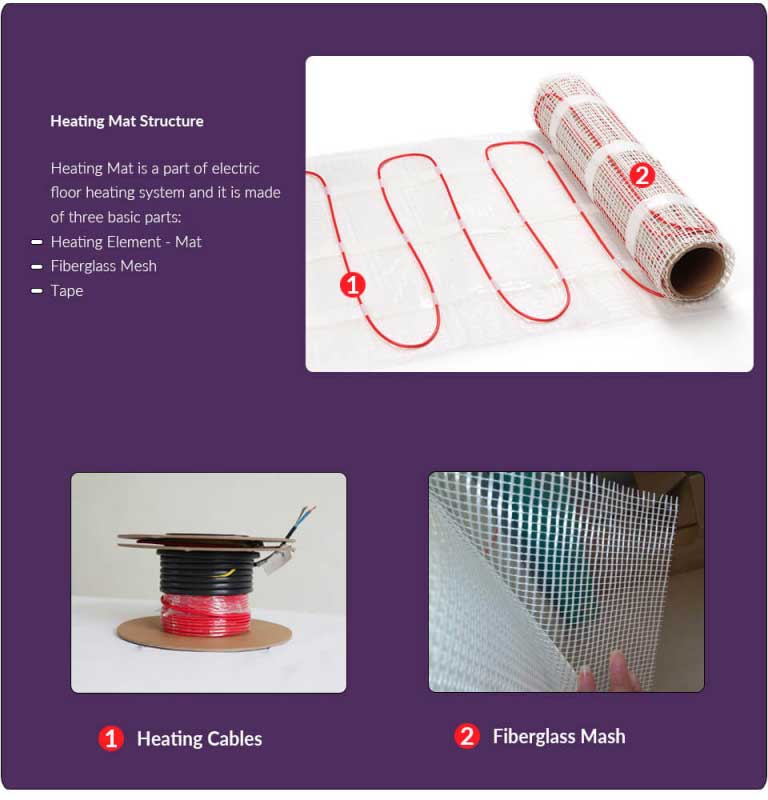

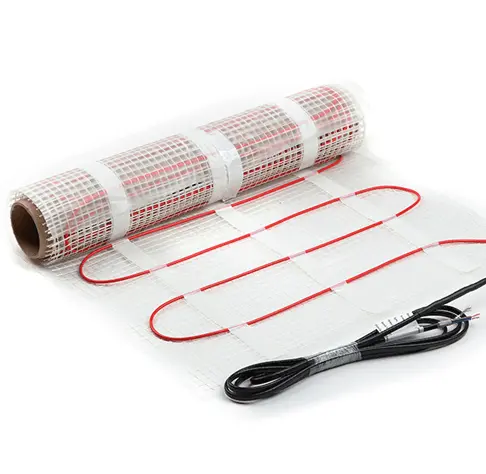

Europe customers often adapt standard size fiberglass mash, and regular width is 48cm or 50cm. All Jiahong Radiant Heat Mat consists of three different components: fiberglass or nylon mash, heating element, and 2.5-meter standard cold lead.
It is only 3.6mm thick, and the back of the mash has a double-sided tape which makes it easy to install.

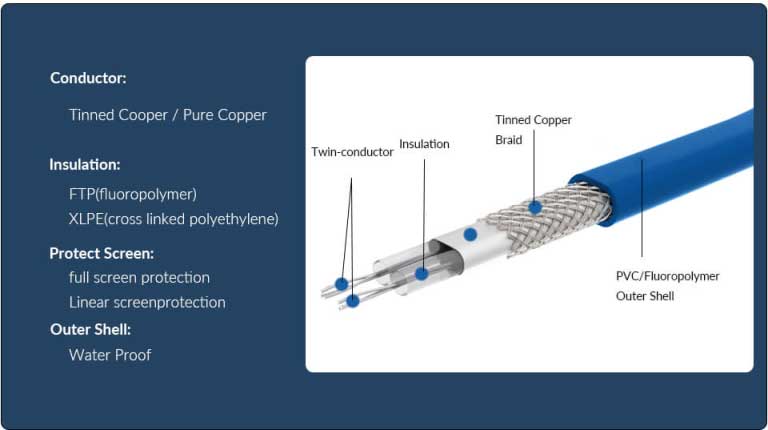

The heating element is a kind of constant wattage heating cable with a twin conductor.
The twin conductor structure supports a single-point connection. This heating element is also called a floor heating cable.
The inner conductor is made of tinned copper. The insulation is made of Fluoropolymer which is characterized by high temperature and high-pressure resistance.
The external braid layer is made of tinned copper as well. It can be used for grounding protection.
Finally, the cable is covered with a 100% waterproof PVC. It is a reasonable structure that allows it to be used for more than 30 years.
Jiahong Radiant Heat Mat is a unique, easy and quick underfloor heating solution. It is widely used in bathrooms, kitchens, basements and other wet and dry areas in the house.
The heated floor mat is also commonplace at spas and destination resorts, new construction or renovation.

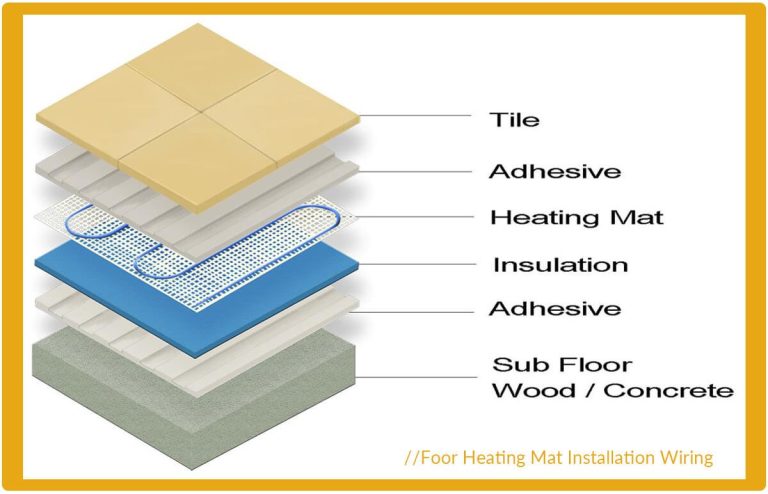

Jiahong Radiant Heat Mats are simply laid out on the floor in the area you want to heat before floor installation.
The pressure-sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag-free while allowing the mats to be easily repositioned when necessary.
The mats can be rolled out quickly across the floors reducing installation time by 35% – for a truly fast and secure method of electric underfloor heating installation.
In the process of installing the StickyMat system, flexible tile adhesive and self-leveling compound may be required.
Every Jiahong Radiant Heat Mat requires an extra precise heating thermostat.
And Jiahong Radiant Heat Mat could match most types of thermostats in the market.
The thermostat connects to the heating cable and adjusts the heat output, which dramatically reduces heat-up times by at least 50%. Jiahong provides a relevant thermostat as well.

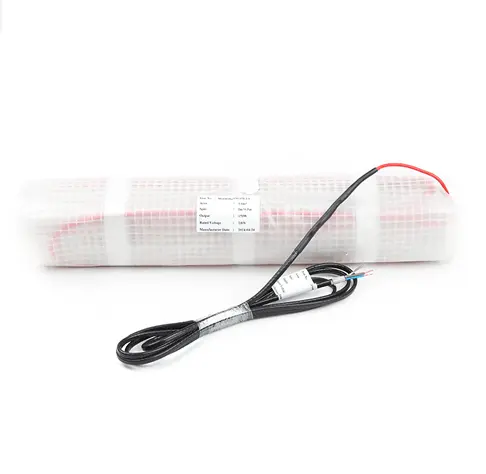

Jiahong Radiant Heat Mat is generally packed with a color box or blank box. For regular types, we accept small MOQ and short lead time. You may also customize your packages such as a corrugated box, ads stickers, etc. Besides, our design department is glad to provide professional suggestions and the true case for reference.
Jiahong Radiant Heat Mat is approved by CE, TUV, and EAC. It also comes with a 25-year warranty, which is the longest in the industry. So, it is ideal for use as a primary heat source and in rooms with high heat-loss such as conservatories.

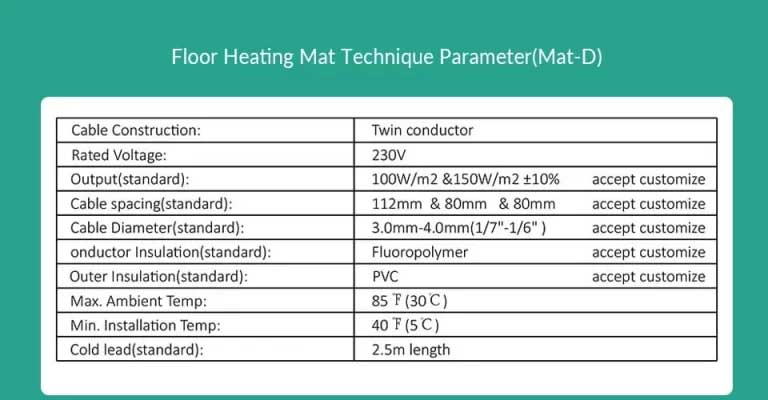

| Cable Construction | Twin conductor |
| Rated Voltage | 230V |
| Output(standard) | 100W/m2 &150W/m2 ±10% accept customize |
| accept customize 112mm & 80mm & 80mm | Cable spacing(standard) |
| accept customize 3.6mm-4.2mm(1/7″-1/6″ ) | Cable Diameter(standard) |
| accept customize Fluoropolymer | Conductor Insulaton(standard) |
| accept customize PVC | Outer Insulaton(standard) |
| Max. Ambient Temp | 85℉(30℃) |
| Min. Installation Temp | 40℉(5℃) |
| Cold lead(standard) | 2.5m length |
