Top 1 Heating Cable Exporter in Asia-Pacific.
Over 20 Years of Manufacturing Experience.
Complete Test Reports for Europe.
Technical Support Team to Assist Your Product Design.
Complete Automatic Production Lines Support Fast Delivery.
Support One Stop Sourcing.

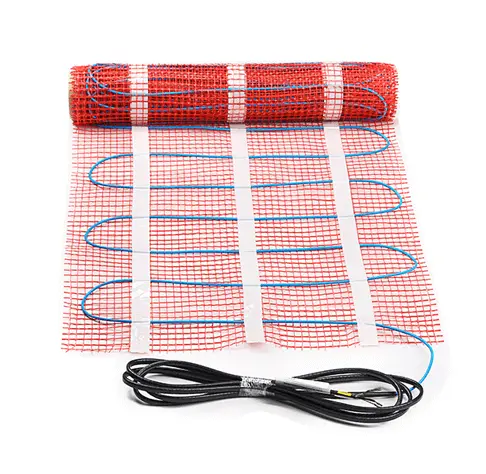

Only 2.0mm Underfloor Heating Mat for Tile Heating.
It features a 2.0mm heating wire and a self-adhesive tape for a rapid installation. It can be used under tile and is available in some different power variants.
This twin conductor heating mat is very popular in Europe markets, especially in the UK.
Jiahong Floor Heating Mat comes in three popular types in Europe: 100W/m2、150W/m2 and 200W/m2
The voltage rating is 230 Vac.
The cable is suitable for use on supply voltages of 208-277 Vac.
The maximum ambient temperature is 85°F (30℃), and the minimum installation temperature is 40°F (5℃).

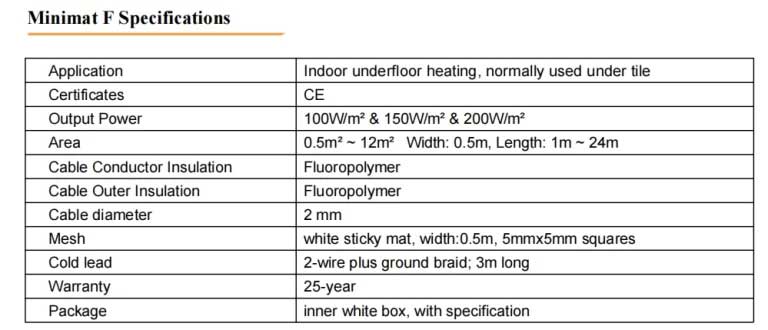

Graphic: Technique Parameter (Mat-F)
All Jiahong Floor Heating mats consist of three different components: Fluoropolymer conductor insulation, fluoropolymer outer insulation and a 3-meter length for every two wires plus ground braid cold lead.
Europe customers often adapt standard size fiberglass mash, and regular width is 50 cm, length is 1m to 24 m, and size is 0.5m2 - 12m2.
It is only 2.6mm thick, and the back of the mesh has double-sided tape, which makes it easy to install.
The heating element is a kind of constant-wattage heating cable with two conductors.

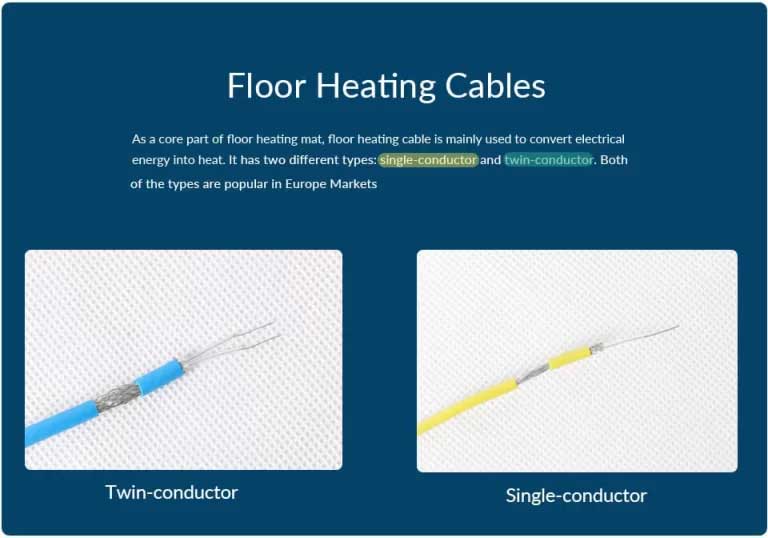

Graphic: Two Types of Floor Heating Cable
This heating element is also called a floor heating cable.
The inner conductor is made of tinned copper.
The insulation is made of fluoropolymer, which is characterized by high temperature and high pressure resistance.
The external braid layer is made of tinned copper as well.
It can be used for grounding protection.
Finally, It has a reasonable structure that allows it to be used for more than 30 years.
Jiahong Floor Heating Mat is a unique, easy and quick underfloor heating solution.
It is widely used in bathrooms, kitchens, basements and other wet or dry areas in your house.

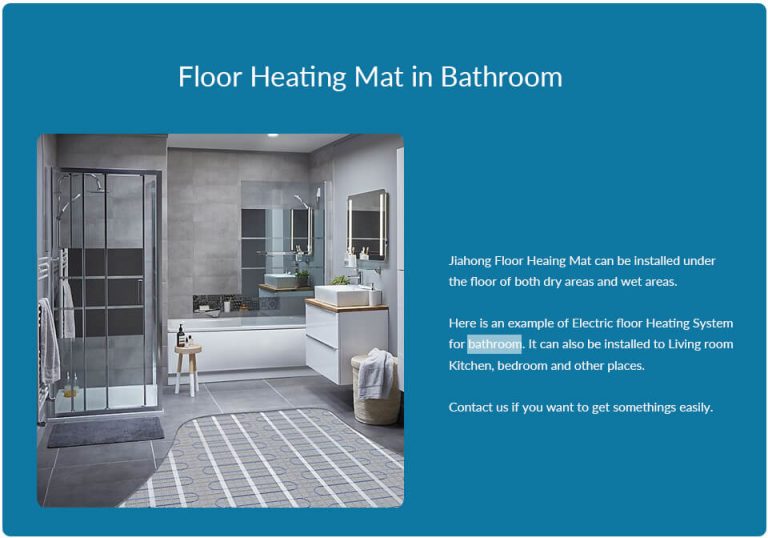

Graphic: Floor Heating Mat in Bathroom
Jiahong Heating Mats are simply laid out on the floor in the area you want to heat before floor installation.
The pressure-sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag-free while allowing the mats to be easily repositioned when necessary.
The mats can be rolled out quickly across the floors, reducing installation time by 35%, for a truly fast and secure method of electric underfloor heating installation.
In the process of installing the sticky mat system, flexible tile adhesive and a self-leveling compound may be required.

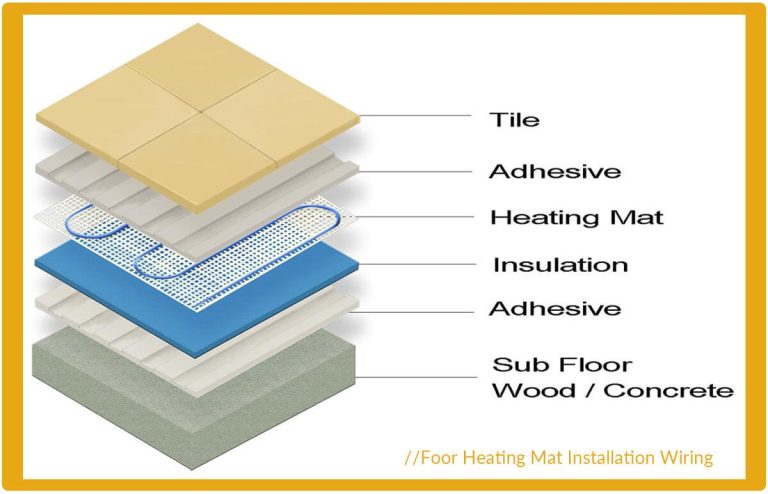

Graphic: Floor Heating Mat Installation Wiring
Every Jiahong Floor Heating Mat requires an extra precise heating thermostat.
And Jiahong tile floor heating mat could match most types of thermostats in the market.
The thermostat connects to the heating cable and adjusts the heat output, which dramatically reduces heat-up times by at least 50%.
Jiahong provides a relevant thermostat as well. Please refer to the thermostat details page.
Jiahong Radiant Heat Mat is generally packed in a color box or a blank box. For regular types, we accept a small MOQ and a short lead time. You may also customize your packages, such as a corrugated box, advertising stickers, etc. Besides, our design department is glad to provide professional suggestions and the true case for reference.
