Jiahong Floor Heating Mat, also known as under floor Heating Mat, is designed to provide heat for any kinds of the floor in the cold weather.
It is widely used on ceramic or porcelain tile, stone or brick floors, engineered wood floor, laminate floor, solid floor and so on.
This heating mat is very popular in Europe markets, especially in the UK.
Jiahong Floor Heating Mat comes in two popular types in Europe: 100W/m2 and 150W/m2.
The voltage rating is 230 Vac.
The cable is suitable for use on supply voltages of 208-277 Vac.
The maximum ambient temperature is 85°F (30oC), and the minimum installation temperature is 40°F (5oC).

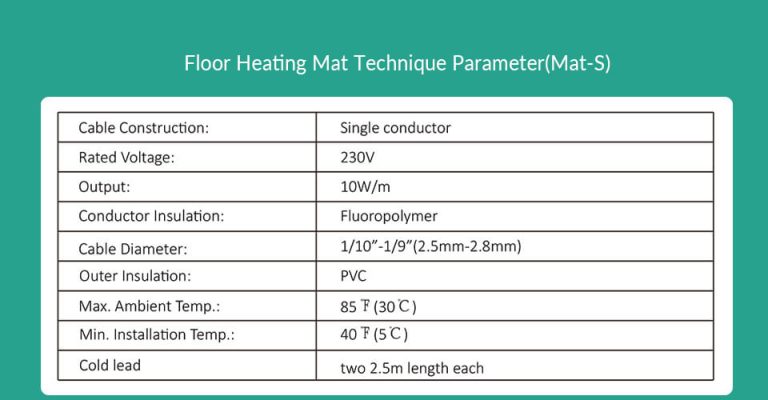

Graphic: Technique Parameter (Mat-S)

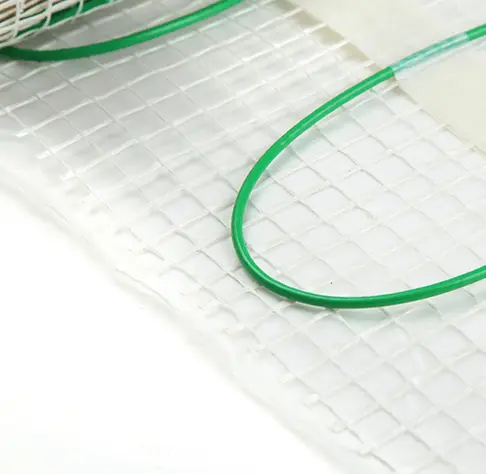

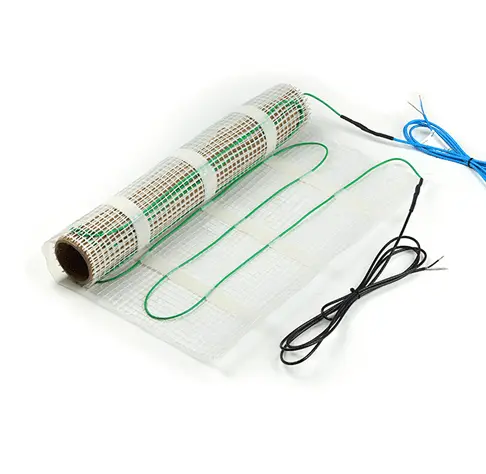

All Jiahong Floor Heating Mat consists of three different components: fiberglass or nylon mash, heating element and 2.5-meter length every two wires plus ground braid cold lead.
Europe customers often adapt standard size fiberglass mash, and regular width is 48cm or 50cm.
It is only 2.6mm thick, and the back of the mesh has a double-sided tape which makes it easy to install.
The heating element is a kind of constant wattage heating cable with a single conductor.

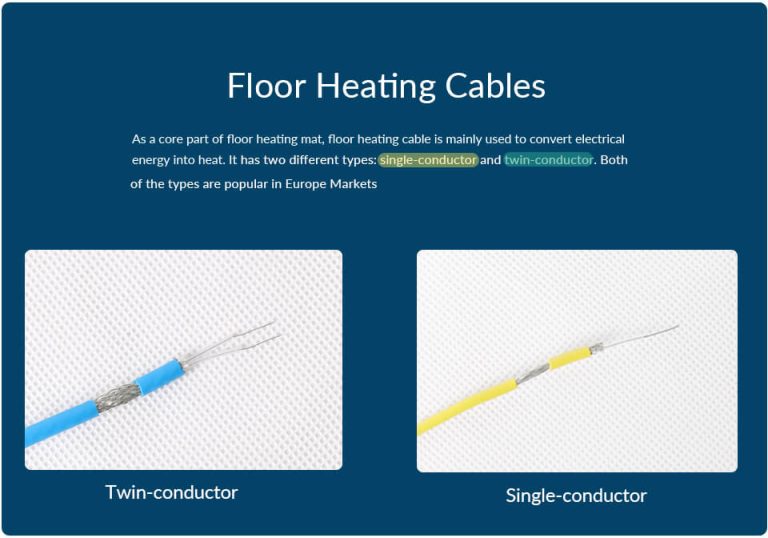

Graphic: Two Types of Floor Heating Cable
This heating element is also called a floor heating cable.
The inner conductor is made of resistance wire.
The insulation is made of Fluoropolymer which is characterized by high temperature and high-pressure resistance.
The external braid layer is made of tinned copper as well.
It can be used for grounding protection.
Finally, the cable is covered with a 100% waterproof PVC. It has a reasonable structure that allows it to be used for more than 30 years.
Jiahong Floor Heating Mat is a unique, easy and quick underfloor heating solution.
It is widely used in bathrooms, kitchens, basements and other wet or dry areas in your house.

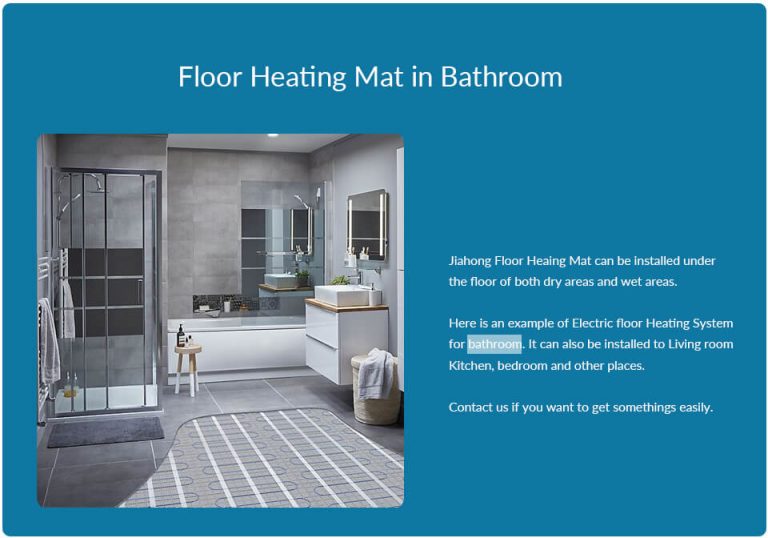

Graphic: Floor Heating Mat in Bathroom
The heated floor mat is also commonplace at spas and destination resorts, new construction or renovation.
Jiahong Heating Mats are simply laid out on the floor in the area you want to heat before floor installation.
The pressure-sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag-free while allowing the mats to be easily repositioned when necessary.
The mats can be rolled out quickly across the floors reducing installation time by 35% – for a truly fast and secure method of electric underfloor heating installation.
In the process of installing the sticky mat system, flexible tile adhesive and self-leveling compound may be required.
Graphic: Floor Heating Mat Installation Wiring
Every Jiahong Floor Heating Mat requires an extra precise heating thermostat.
And Jiahong tile floor heating mat could match most types of thermostats in the market.
The thermostat connects to the heating cable and adjusts the heat output, which dramatically reduces heat-up times by at least 50%.
Jiahong provides a relevant thermostat as well.

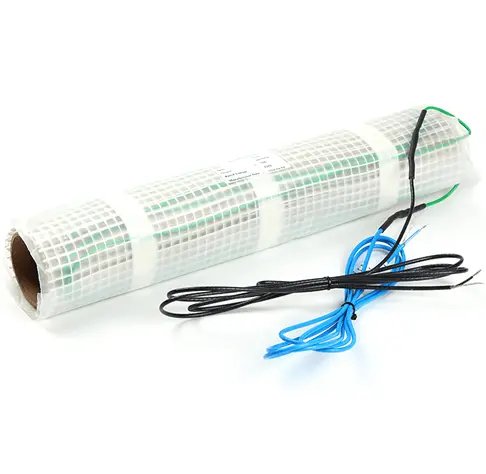

Jiahong Floor Heating Mat is generally packed with a color box or blank box.
For regular types, we accept small MOQ and short lead time.
You may also customize your package such as a corrugated box, ads stickers, etc.
Besides, our design department is glad to provide professional suggestions and the true case for reference.
Jiahong Floor Heating Mat is approved by CE, TUV, and EAC. Besides, we offer a 25-year warranty, which is the longest in the industry.
So it is ideal for use as a primary heat source and in rooms with high heat-loss such as conservatories.
