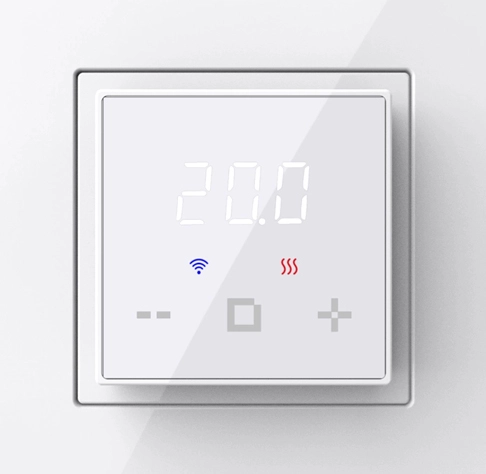

ET-44W Wi-Fi thermostat is designed to offer an intelligent temperature regulation solution to the floor heating system. This mechanical thermostat has a replaceable mid-frame structure to meet your different appearance needs.
Jiahong's ET-44W wifi house thermostat can switch on and off.
Three modes are available:
Auto mode: Our wifi controlled heating thermostat ET-44W changes the setting temperature automatically through the Edit datas located in APP. It is weekly schedule.
Hold mode: The basic smart thermostat will maintain the hold temperature.
Holiday mode: In holiday mode, the ET-44W Wi-Fi thermostat will maintain the holiday temperature until the holiday time ends and then back to auto mode.
After the user sets the temperature, the ET-44W Wi-Fi thermostat keeps the floor temperature at the set temperature. After power off, power on again, the original set temperature will be retained and executed. Setting range of this thermostat is 5-40°C.
After the user sets the temperature, if children or the elderly do not want to operate the ET-44W basic smart thermostat by mistake, you can set a key lock for the thermostat. After power off, power on again, the key lock still exists and continue to execute.
This function is suitable for winter and cold seasons. When the user forgets to turn on the ET-44W wifi controlled heating thermostat, it can avoid freezing the plants due to the low room temperature. After turning on this function, the floor temperature is maintained at 5°C when the thermostat is off.
This function is used to replace the old temperature controller. When the parameters of the old floor sensor are similar to the parameters of a certain model shown in the table below, there is no need to replace the floor sensor. Just select the right floor sensor model here.
Temperature | The resistance value of the floor sensor at the corresponding temperature point (Ω) | ||||
0:3950 10k | 1:3700 10K | 2:3600 12K | 3:3380 10K | 4: 15K | |
0°C | 32800 | 30286 | 34423 | 26050 | 41900 |
10°C | 19733 | 19055 | 22217 | 17630 | 27281 |
20°C | 12419 | 12320 | 14660 | 12040 | 18205 |
30°C | 7905 | 8165 | 9869 | 8331 | 12427 |
In order to meet the brightness requirements of different applications, this basic smart thermostat provides a standby brightness adjustment function. If the wifi controlled heating thermostat is installed in the bedroom, in order to avoid the brightness produced by the thermostat at night from affecting sleep, the brightness can be adjusted to 0 (completely off) or 1 (minimum brightness).
The ET-44W mechanical thermostat detects a drop in temperature caused by opening a window.Turn off the heat temporarily to save energy.
The adaptive function ensures that the desired temperature value is reached in advance when the next weekly program event is executed.
Used to select the sensor to work.
This function allows the user to correct the floor/room sensor error.
Due to the power of the floor heating, the heat generated by the temperature controller itself is different, thus affecting the temperature value detected by the room sensor. The program can make corresponding correction and compensation for the detection value according to different power.
This function restores the parameters of the set temperature and advanced settings to the factory default parameters.
Voltage: 120~240Vac 50/60Hz
Max Load: 16A（Resistive load）
Wiring specification: ≤2.5mm²
Standby power: < 1W
IP Class: IP21
Floor temperature limit protection: 30℃
